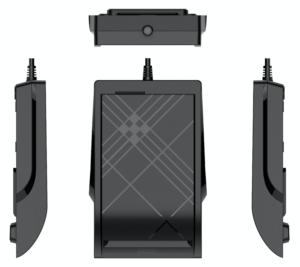

vR504-CL VHBR Contactless Card Reader

vR504-CL VHBR Contactless Card Reader

vR504-CL – Buy vR504-CL VHBR Contactless Card Reader – vR504-CL

Buy vR504-CL VHBR Contactless Card Reader is a high-speed USB CCID-compliant NFC and smart card reader designed for secure authentication, ePassport verification, eID systems, access control, and payment applications. It supports ISO/IEC 14443 Type A & B, NFC, MIFARE, Calypso, and VHBR (Very High Bit Rate) technology, delivering communication speeds up to 6.8 Mbps for fast contactless transactions. Featuring a built-in 13.56 MHz antenna, PC/SC compatibility, encrypted firmware upgrades, Open UID support, and compatibility with Windows, Linux, and macOS, the vR504-CL is an ideal solution for government, banking, transportation, and enterprise security application.

vR504 – VHBR Contactless Card Reader Specification

Feature

• Full speed USB 0 standard
• Power supply by USB, the USB interface must be provided 120mA current when insert card
• The maximum current less than 100mA (no smartcard inserts)
• Accordance with CCID standard
• Support Contactless Reader
  • Accordance with ISO/IEC 14443 (A and B) standard

Very High Bit Rates

• Support VHBR (Very High Baud Rates)
  • Support for ISO 14443 Type A and B, ISO
  • Very High Baud Rate (VHBR): Update (Rx) = 4 Mbits/s & Read (Tx) = 6.8 Mbits/s.
    • Type A card: PCD to PICC up to 106−848kbps! PICC to PCD up to 106−848kbps
    • Type B card: PCD to PICC up to 106kbps−6.8M(fc/2), PICC to PCD up to 106kbps−3.4M(fc/4)
  • Operating distance (0−30mm), it depends on cards

Support Mifare, Calypso contactless card

• Support NFC, Mifare, Calypso contactless card
• Build−in antenna
• Card clock Frequency: 56MHz
• Automatically adjust communication rate speed between card reader and card to highest speed which card supported
• Smart card communication speed: 106kbps, 212kbps,424kbps, 848kbps, 4M and 6.8M

• Open UID (User ID) function
• Support upgrade firmware (encrypted)
• OS:
  • Windows 7/8/10+
  • Linux Kernel 6+ (FC14 X64! ubuntu9.10! ubuntu10.04! ubuntu11.10! openSUSE11.3 X64)
  • macOS
• Drivers must be provided for Windows in the latest stable version available from Microsoft, along with .NET or Java SDKs, complete documentation, and integration examples for use and integration with the card reading

Specification

Communication protocol	CCID 1.1
Interface	USB Type A − high speed
Power supply	USB port on PC
Working current	<100mA (no card inserts)
Working temperature	0~+60˚C
Storage temperature	− 20˚C~85˚C
Humidity	≤90 % (No condensation)
Contactless communication distance	VHBR Card, Type A/B card(0−30mm)
Physical Security	Card circuit protection
Contactless	Build−in antenna
	Support ISO 14443 standard (Type A and B)
	Support NFC, Mifare, Calypso contactless card
	Type A: ·         PCD to PICC up to 106−848kbps! ·         PICC to PCD up to 106−848kbps Type B: ·         PCD to PICC up to 106kbps−6.8M(fc/2) ·         PICC to PCD up to 106kbps−3.4M(fc/4)
Compliance	CE,FCC,RoHS,EMV 2000 level 1
Cases	C9
Dimension	120*80*25.6mm
Weight	136g
Standard	ISO/IEC 14443 TYPE A/B, CCID, USB, VHBR, CE, FCC, RoHS
OS	Windows 2000/XP/2003/Vista/2008/7/8 Linux macOS
