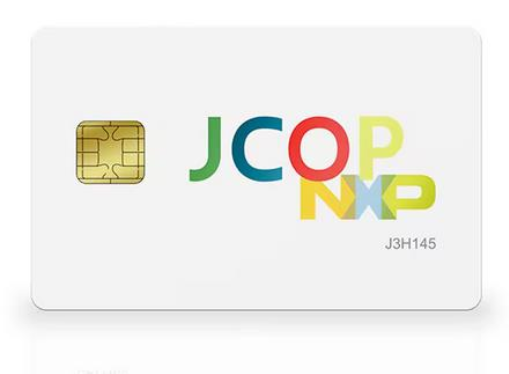

Buy J3H145 JCOP NXP Dual Smart Card Java Card – Buy NXP JCOP J3H145
Buy J3H145 JCOP NXP Dual Smart Card Java Card – JCOP NXP Dual Interface Support RSA4096 ECC Smart Card Java Card J3H145
When you Buy J3H145 JCOP NXP Dual Smart Card Java Card, you receive a high-performance Java Card platform that combines NXP JCOP security, dual-interface convenience, and advanced cryptographic capabilities. Buy NXP JCOP J3H145 for its support for RSA4096, ECC, Java Card, and GlobalPlatform standards makes it an excellent choice for organizations developing secure authentication, payment, identity, and embedded security solutions.
Whether you are developing custom Java Card applications or deploying secure authentication systems, the J3H145 Smart Card Java Card Dual RSA4096 ECC delivers the performance, interoperability, and security required for demanding commercial and enterprise environments.
-
Dual Interface Support: Enables both contact and contactless communication, providing versatile usage and enhanced user convenience.
-
Banking Grade PVC Material: Ensures durability and longevity, making the card suitable for frequent use in various applications.
-
Advanced Encryption Algorithms: Supports RSA4096 and ECC, ensuring high security and data protection for sensitive information.
Specification
| Model Name | JCOP NXP J3H145 |
| OS Certification | FIPS 140-2 Level 3 |
| CC EAL5+ | |
| Chip Certification | CC EAL6+ |
| Secure box | Yes |
| CPU | 8bit |
| Physical Storage | |
| NVM Type | |
| Total NVM Size | 145K |
| Total RAM Size | 4K |
| User NVM Size | 122K |
| User RAM size | 2.56K |
| Algorithm | |
| RSA 2048 | Yes |
| RSA 4096 | Yes |
| AES | Yes |
| SHA-1 | Yes |
| SHA-256 | Yes |
| SHA-384 | Yes |
| SHA-512 | Yes |
| MD5 | No |
| 3DES (ECB, CBC) | Yes |
| KOREAN SEED | No |
| ECC FP | 160 bits to 521 bits |
| Standard Compliance | |
| Java Card™ 3.0.4 | Yes |
| GlobalPlatform 2.2.1 | Yes |
| Communication Protocol | |
| ISO7816 T=0 | No |
| ISO7816 T=1 | Yes |
| ISO14443 T=CL Type A | Yes |
| ISO14443 T=CL Type B | No |
| Mifare | No |
| JCRE Features | |
| APDU Buffer Size | 261 bytes |
| Transaction Size | 2048 up to 64K |
| Extended APDU | Yes |
| Logical Channels | 4 |
| GP Secure Channel Protocol | SCP01* / SCP02(Default) /SCP 03* |
| Garbage Collector | Yes |
| Applet deletion | Yes |
| Customization | |
| Feature | Dual Interface,Contact,Contactless |
| Card Printing | 4/6 colours Offset Printing,UV Printing |
| Card Surface Process | Glossy Finish, Matte Finish, Other Card Processing Technology (Only available for Offset Printing ) |
| Magnetic Stripe | Hi-Co, Lo-Co |
| Others | ATR
SIM-size Cutting |
| Application | |
| e-Government,Banking and Finance,Public Transportation, Access Control,Mobile,Loyalty Card | |
* These functions are not supported by default. If you need these functions, please contact us before placing order.
Buy J3H145 JCOP NXP Dual Smart Card Java Card
Customization options – Buy NXP JCOP J3H145
- Java COS(+ from /Min. order: 5,000 pieces)
- Java Applet(+ from /Min. order: 5,000 pieces)
- Personalization(+ from /Min. order: 5,000 pieces)
- Card Printing(+ from /Min. order: 2,000 pieces)
- J3D081(+ from /Min. order: 5,000 pieces)
Buy J3H145 JCOP NXP Dual Smart Card Java Card
Buy J3H145 JCOP NXP Dual Interface Smart Card Java Card RSA4096 ECC from Aft India.
Packaging and delivery – Buy J3H145 JCOP NXP Dual Smart Card Java Card
| Specification | Details |
|---|---|
| Selling Unit | Single Item |
| Package Dimensions | 8.56 × 5.40 × 0.08 cm |
| Gross Weight (Per Unit) | 0.005 kg |
