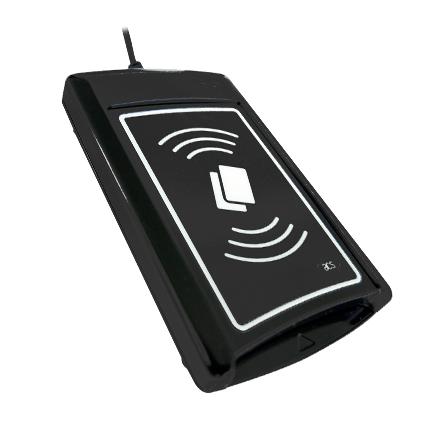

Buy ACS ACR1281U Smart Card Reader
Buy ACS ACR1281U Smart Card Reader | Dual Interface
Buy ACS ACR1281U Smart Card Reader from Aft India for sale. The ACS ACR1281U Smart Card Reader is a powerful dual-interface solution designed to support both contact and contactless smart cards compliant with ISO 7816 and ISO 14443 standards. If you are looking to Buy ACS ACR1281U Smart Card Reader for reliable smart card applications, this versatile device provides convenient access to contact, contactless, hybrid, and combi cards through a single reader. The ACR1281U-C1 DualBoost II features PC/SC compliance for both interfaces, intelligent card detection, and a built-in SAM slot for enhanced security in contact and contactless applications.
It also offers USB firmware upgradeability, contact memory card support, and extended APDU support, making it a cost-effective and flexible all-in-one smart card reader for businesses, organizations, and applications worldwide. With its advanced features, reliable performance, and broad smart card compatibility, Buy ACS ACR1281U Smart Card Reader is an excellent choice for secure and convenient smart card solutions in all locations.
ACR1281U-C1 Standard Features
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Smart Card Reader:
- Read/write speed of up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
- Built-in anti-collision feature (only one tag is accessed at any time)
- Supports extended APDU (max. 64 kbytes)
- Contact Smart Card Reader:
- Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
- Supports CAC (Common Access Card)
- Supports PIV (Personal Identity Verification Card)
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- ISO 7816-compliant SAM slot
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Built-in Peripherals:
- Two user-controllable LEDs
- User-controllable buzzer
- USB Firmware Upgradability
ACR1281U-C1 Typical Applications
- e-Government
- Banking & Payment
- Network Security
- Access Control
- e-Purse & Loyalty
- Transportation
ACR1281U-C1 Technical Specifications
| Dimensions | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
| Weight | 140 g |
| Compliance / Certifications |
|
| Interface | USB Full Speed |
| Operating Distance | Up to 50 mm (depends on the tag type) |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby) |
| Operating Temperature | 0-60⁰ C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support |
|
| Operating System Support |
|
