Mini SATA HDD/SSD/IDE Copy Pro IX – 1 to 1 target duplication
Mini SATA HDD/SSD/IDE Copy Pro IX – Buy SATA Duplicator, Hard Drive Copy Machine, HDD Cloner, SSD Copier, IDE Duplicator
Buy Mini SATA HDD/SSD/IDE Copy Pro IX is a 1 to 1 target professional specification, 3.5 & 2.5 inch SATA HDD / SSD in total high speed copy & data erasure! Compatible with IDE HDD. Buy SATA Duplicator, Hard Drive Copy Machine, HDD Cloner, SSD Copier, IDE Duplicator from Aft India for sale at best price. More details
Buy SATA Duplicator, Hard Drive Copy Machine, HDD Cloner, SSD Copier, IDE Duplicator
| Compatible SATA HDDs |
|---|
| ● 2.5 or 3.5-inch SATA HDD [SATA Revision 3.0 to 1.0 (6G to 1.5Gbps)] *Operation confirmed with HDDs up to 32TB (as of March 2026). . *SAS (Serial Attached SCSI) HDDs cannot be used. |
| Compatible SATA SSDs |
| ● MLC / TLC / QLC type 2.5-inch SATA SSD [SATA Revision 3.0 to 1.0 (6G to 1.5Gbps)] *SLC type SSDs are not covered by the warranty. |
| Compatible IDE HDD/SSD (when using the included SATA-IDE adapter) |
| ● 2.5-inch/3.5-inch HDD or SSD equipped with an IDE (PATA) interface ● HDDs that operate with Ultra DMA 2 or higher (HDDs with Ultra DMA 0-1 or PIO will not work) *If connecting two IDE HDDs simultaneously, please purchase one additional conversion adapter. (Model number: KDA-IDE) *It is not possible to connect a 2.5-inch HDD and a 3.5-inch HDD simultaneously to a single IDE-SATA conversion adapter. |
Product Specifications
| Product name | This is the Ultra Hi-Speed PRO V2 stand – Mini HDD Copy Pro IX |
|---|---|
| Model number | KD25/35UHSPROV2 |
| JAN code | 4549032018554 |
| Warranty period | 1 year |
| Body color | black |
| Device Interface | SATA Revision 3.0~1.0(6G~1.5Gbps) |
| Supported file systems | FAT16/32, NTFS, EXT2/3/4 |
| Compatible partition tables | MBR, GPT (Note: Unsupported file systems can be copied using a whole HDD/SSD.) |
| Main unit dimensions (approx.) | Width 116mm x Height 28.5mm x Depth 79mm (excluding accessories and protrusions) |
| Weight (approx.) | 365g (excluding accessories) |
| Temperature/humidity | Temperature 5-45°C, humidity 20-80% (non-condensing, within the operating range of the connected HDD/SSD) |
| AC adapter specifications | [Input] 100V-240V [Output] 12V 5A |
Product content (Mini HDD Copy Pro IX (KD25/35UHSPROV2)
*This product does not include an HDD/SSD.

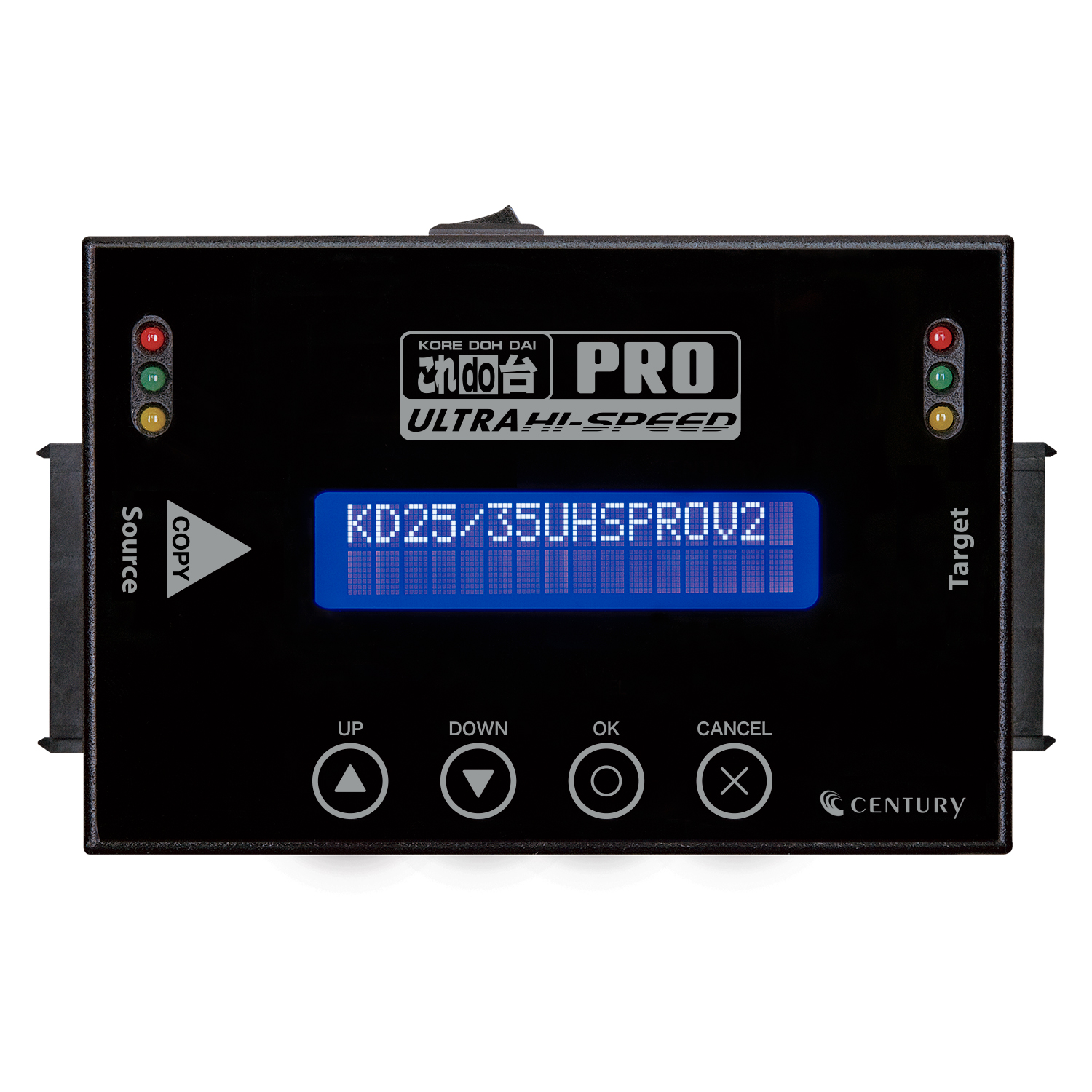

Part names
Product features
- It’s possible to copy and erase all data from a SATA HDD/SSD without needing a PC.
- High-speed copy and erase approaching the limits of the SATA 3.0 (6Gbps) standard.
With SATA 3.0 (6Gbps) support, it achieves more than double the transfer speed compared to non-compatible models!
*Actual measurements in our test environment. SSD used: Western Digital WD Red (2TB).
*Transfer speeds will vary significantly depending on the HDD/SSD you use.

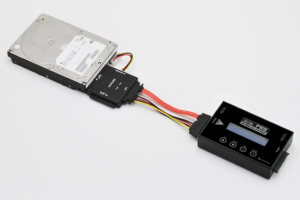

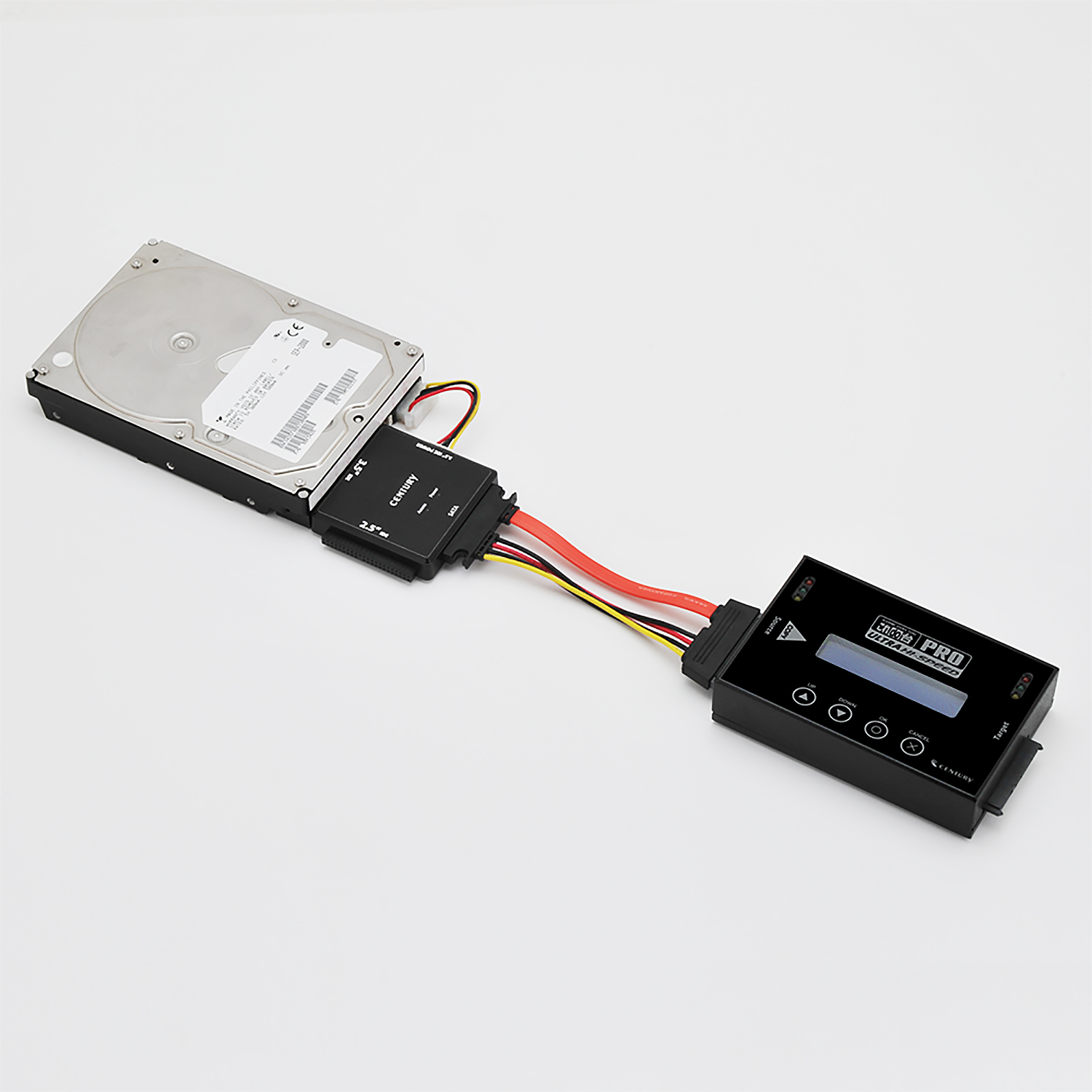

The included adapter also supports IDE HDDs.

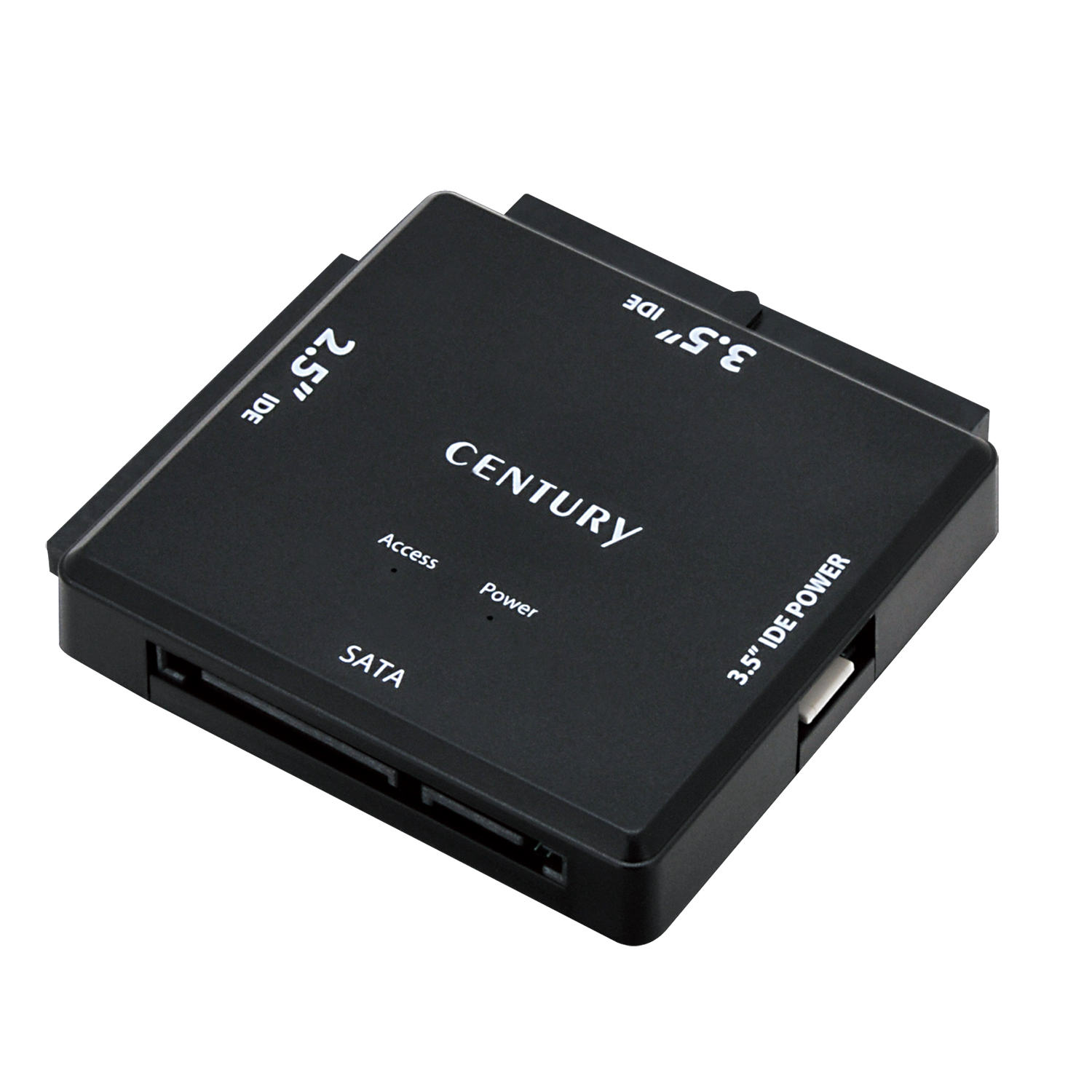

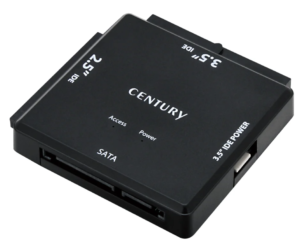

Includes one adapter for connecting IDE HDDs!
Allows copying data from IDE HDDs to SATA HDDs and other drives with different interfaces.
*For details on additional IDE-SATA adapters, please click here.
4 types of copy modes
▶ System & File Copy
This process copies only the system data and files from the HDD. Because it copies only the data being used and not the free space, the copy time is minimized.
▶All partition copy
Because it does not copy areas that have not been partitioned, it enables high-speed copying.
▶Whole HDD/SSD Copy
This will copy the entire contents of your HDD.
It can copy regardless of the operating system or format.
▶Percent copy
This function copies a specified area of an HDD/SSD.
It’s possible to copy only a specific portion, such as when you know in advance which areas are corrupted.
Two types of copy assistance functions
▶Error Skip
If there are sector errors on the disk, you can skip the error locations and force the copy to continue.
*Please note that if you skip errors during the copy process, the copied HDD/SSD may not function correctly.
▶Compare
This function compares the contents of the source disk and the destination disk to determine if they are identical.
Seven data erase modes, including the ability to erase data from two devices simultaneously.
▶ Quick Erase
This writes 0x00 to the first sector of the disk. This allows for extremely fast data erasure.
▶Fluid Erase
Write 0x00 to all sectors.
▶DoD Erase
Write 0x00, 0xFF, and a random number to all sectors.
▶DoD Erase & Compare
Write 0x00, 0xFF, and a random number to all sectors, and then perform a compare test.
▶DOD ECE 7 times erase
The data is erased by writing to all sectors seven times.
▶Secure Erase
This command is executed on devices that support secure erase, thereby erasing the data.
▶Enhanced Secure Erase
This command instructs devices that are using Enhanced Secure Erase to execute the command and erase the data.
Speed test function
This device can measure the read/write speed of connected HDDs/SSDs.
*Please note that the write test will erase your data.
SMART information display function
▶10 types of SMART information can be displayed!
- Disk capacity
- Model number display
- Firmware version
- Serial number
- Number of power-on cycles
- Usage time
- Number of alternate sectors
- Number of bad sectors
- Seek error rate
- temperature
Important Notes Regarding the SMART Information Display Function
Depending on the HDD manufacturer/model, different values may be displayed even if the HDD is error-free.
Please note that this is a specification of this product.
