NXP MIFARE DESFire EV2 8K

NXP MIFARE DESFire EV2 8K – Buy NXP MIFARE DESFire EV2 8K

NXP MIFARE DESFire EV2 8K is a secure 13.56 MHz contactless smart card with 8 KB memory, advanced AES-128/3DES encryption, and multi-application support. Buy NXP MIFARE DESFire EV2 8K for secure access control, public transport, smart city, payment, loyalty, student ID, parking, hospitality, and event ticketing applications worldwide.

This product is not recommended for new designs. Instead, we recommend to use NXP’s MIFARE DESFire EV3 IC.

NXP MIFARE® DESFire® EV2 8K

• Common Criteria certification: EAL5+ (Hardware and Software)
• Hardware DES using 56/112/168 bit keys
• Hardware AES using 128-bit keys
• Backward compatibility mode to MIFARE DESFire EV1

Custom this MIFARE DESFire EV2 8K card with your design

Customized MIFARE DESFire EV2 8K (front and back printing)

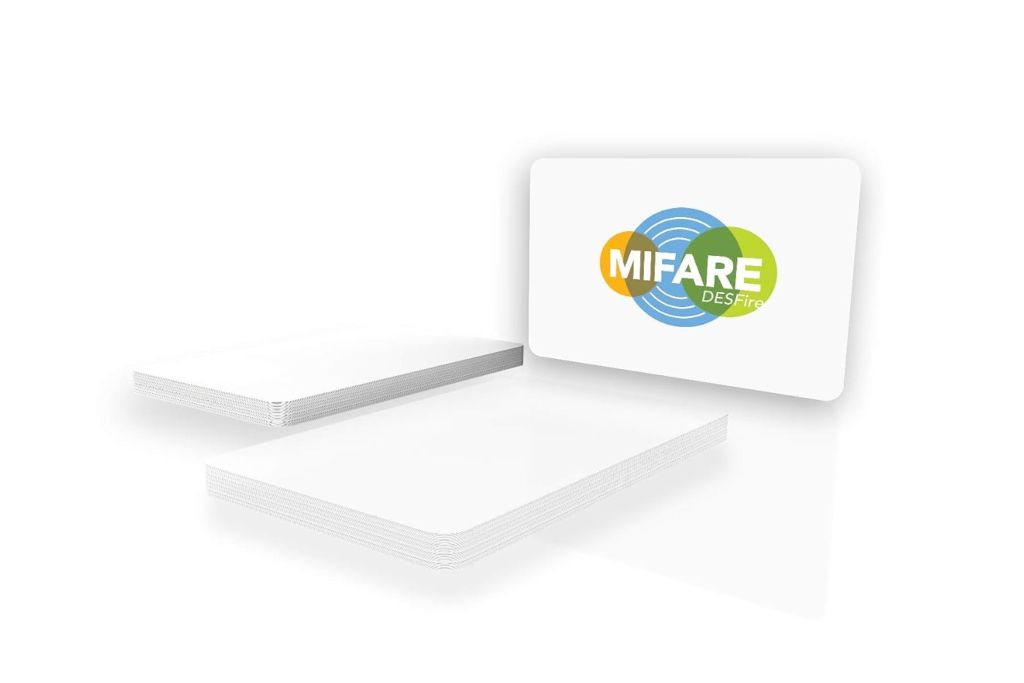

NXP MIFARE DESFire EV2 8K 13.56MHz Blank White ISO PVC Cards, ISO14443A, Gloss Finish (100). Custom PVC NFC card with an NXP MIFARE DESFire EV2 8K chip, high-definition front and back color printing.

Design your MIFARE DESFire EV2 8K PVC cards with high quality 600 DPI full color front and back printing. All of our NXP MIFARE DESFire EV2 8K cards are printed using Retransfer technology, meeting the highest demands in terms of image quality and durability.

To create your design:

Due to the technical limitations of Retranfer technology, designs with large areas of solid color are not recommended, as they may affect print quality.

Once your file has been prepared, send it to us by e-mail, specifying your order number at the address:

Your custom MIFARE DESFire EV2 8K cards will be manufactured within 10 to 15 days, then we will proceed to the shipment of your order.

Features

The MIFARE DESFire EV2 contactless IC is ideal for system operators and developers building reliable, interoperable and scalable contactless solutions. The second evolution of our industry-leading MIFARE DESFire family offers superior performance, security and enhanced multi-application support.

Key Features

• ISO/IEC 14443 A 1–4 and ISO/IEC 7816 compliant
• 8 kB EEPROM with fast programming
• Flexible file structure
• NFC Tag Type 4 compliant
• Secure, high-speed command set
• MIsmartApp grants application space to third parties without sharing the master key
• Unlimited number of applications
• Transaction MAC to authenticate transactions
• Multiple key sets per application for key rolling
• Virtual Smart Card architecture for privacy protection
• Proximity check to protect againt relay attacks
• High data rates according to ISO/IEC 14443-4: up to 848 Kbits/s
• Choice of open DES/2K3DES/3K3DES/AES crypto algorithms in hardware
• Unique 7-byte serial number (ISO Cascade Level 2)
• Transaction oriented automatic anti-tear mechanism
• Common Criteria certification: EAL5+ for IC hardware and software
• Optional MIFARE Classic® implementation
• Backward compatibility mode to MIFARE DESFire EV1 and D40 (MF3ICD40)

KEY BENEFITS

• Functional backward compatible to MIFARE DESFire EV1
• Improved operating range and performance
• Enhanced security level with Common Criteria EAL5+ certification
• MIsmartApp enabling post–issuance of additional services in already deployed cards
• Multiple keysets with key rolling for simplified key migration in the field
• Transaction MAC ensuring the authenticity of each transaction

Innovation in multi-application smart cards

MIFARE DESFire EV2 8K NFC Card – Technical Specifications

MIFARE DESFire EV2 8K NFC Card Specifications – 13.56 MHz, AES-128, 7-Byte UID

Specification	Details
Product Type	NFC Card
Chip	MIFARE DESFire EV2 8K
Memory / Total Memory	8 KB
Standard	ISO/IEC 14443 Type A + ISO/IEC 7816
NFC Forum Type	Type 4
Compatibility	All NFC-enabled devices
Works With	NFC Tools for Android and iOS
UID Size	7 Bytes
Encryption / Security	Single DES, 2K3DES, 3K3DES, AES-128
Number of Applications	No Limit
Data Transfer Rate	106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
Data Retention	25 Years
Write Endurance	Up to 500,000 Cycles
Operating Frequency	13.56 MHz
Operating Distance	Up to 10 cm
Operating Temperature	-25°C to 70°C
Card Shape	Rounded Rectangle
Card Color	White
Card Material	PVC
Card Dimensions	85.5 mm × 54 mm
Card Weight	6 g
On-Metal Use	No

Product Description

NXP MIFARE DESFire EV2 8K is a secure, high-performance contactless smart card solution designed for global applications requiring advanced security, flexibility, privacy, and multi-application functionality. Buy NXP MIFARE DESFire EV2 8K cards with 8 KB memory, 13.56 MHz contactless technology, ISO/IEC 14443 Type A compliance, and support for ISO/IEC 7816-4 commands.

The MIFARE DESFire EV2 8K features a hardware cryptographic engine supporting DES, 2K3DES, 3K3DES, and AES-128 encryption for secure data transmission, confidentiality, and integrity protection. With its flexible application architecture and high-performance contactless interface, MIFARE DESFire EV2 8K is ideal for secure public transportation, smart city mobility cards, access control, payment and loyalty programs, student identification, road tolling, parking systems, hospitality, event ticketing, and secure identification applications.

Available for businesses, system integrators, card manufacturers, government organizations, and enterprises worldwide, NXP MIFARE DESFire EV2 8K can be sourced for projects and deployments across Global / Worldwide (All Countries), All locations – India, USA, UK, UAE, Saudi Arabia, Europe, Australia, Canada, Singapore, Malaysia, and other global markets.

About MIFARE DESFire EV2 8K

NXP MIFARE DESFire EV2 8K is a secure, high-performance contactless smart card featuring 8 KB memory, 13.56 MHz NFC technology, ISO/IEC 14443 Type A compliance, 7-byte UID, and advanced AES-128/3DES encryption. Buy NXP MIFARE DESFire EV2 8K for secure access control, public transportation, smart city applications, payment and loyalty, student ID, parking, hospitality, and event ticketing. Ideal for businesses, system integrators, card manufacturers, and organizations looking for reliable MIFARE DESFire EV2 8K cards for sale, wholesale supply, bulk orders, and global deployments.

About this item

• ISO/IEC 14443A Compliant – 13.56MHz
• 7 Byte Unique Identifier (UID)
• Built in backup and security features
• CR80 Size – 85550.8mm

Comparison Table

	MIFARE DESFire EV3	MIFARE DESFire EV2	MIFARE DESFire EV1
ISO/IEC 14443 A 1-4	Yes	Yes	Yes
ISO/IEC 7816-4 support	Extended	Extended	Extended
EEPROM data memory	2/4/8KB	2/4/8/16/32KB	2/4/8KB
Flexible file structure	Yes	Yes	Yes
NFC Forum Tag Type 4	Yes	Yes	Yes
Unique ID	7B UID or 4B RID	7B UID or 4B RID	7B UID or 4B RID
Number of applications	As many as memory size supports	As many as memory size supports	28
Number of files per app	32	32	32
Data rates supported	Up to 848 Kbit/s	Up to 848 Kbit/s	Up to 848 Kbit/s
Crypto algorithms supported	DES/2K3DES/ 3K3DES/ AES128	DES/2K3DES/ 3K3DES/ AES128	DES/2K3DES/ 3K3DES/ AES128
CC certification (HW+SW)	EAL 5+	EAL 5+	EAL 4+
Delegated Application Management (Multi-Application)	Yes, preloaded keys	Yes	–
SUN (Secure Unique NFC Message)	Yes, compatible with NTAG DNA	–	–
Transaction MAC per app	Yes	Yes	–
Multiple keysets per app	Up to 16 keysets	Up to 16 keysets	–
Multiple file access rights	Up to 8 keys	Up to 8 keys	–
Inter-app file sharing	Yes	Yes
Transaction Timer	Yes	–	–
Virtual Card Architecture	Yes	Yes	–
Proximity Check	Yes	Yes	–
Delivery types	Wafer, MOA4, MOA8,  1FF (ID-1) & 2FF (SIM)	Wafer, MOA4, MOA8,  1FF (ID-1) & 2FF (SIM)	Wafer, MOA4, MOA8,  1FF (ID-1) & 2FF (SIM)

Applications

Targeted Applications

• Smart City
  • Closed Loop Payments
  • Smart Lock
• Access Management
  • Physical Access Control
  • Logical Access
• Transport Ticketing
• Public transportation
• Campus and student ID cards
• Loyalty Programs
• ePurse
• Vending
• Event Tickets
• Gaming and Hospitality
