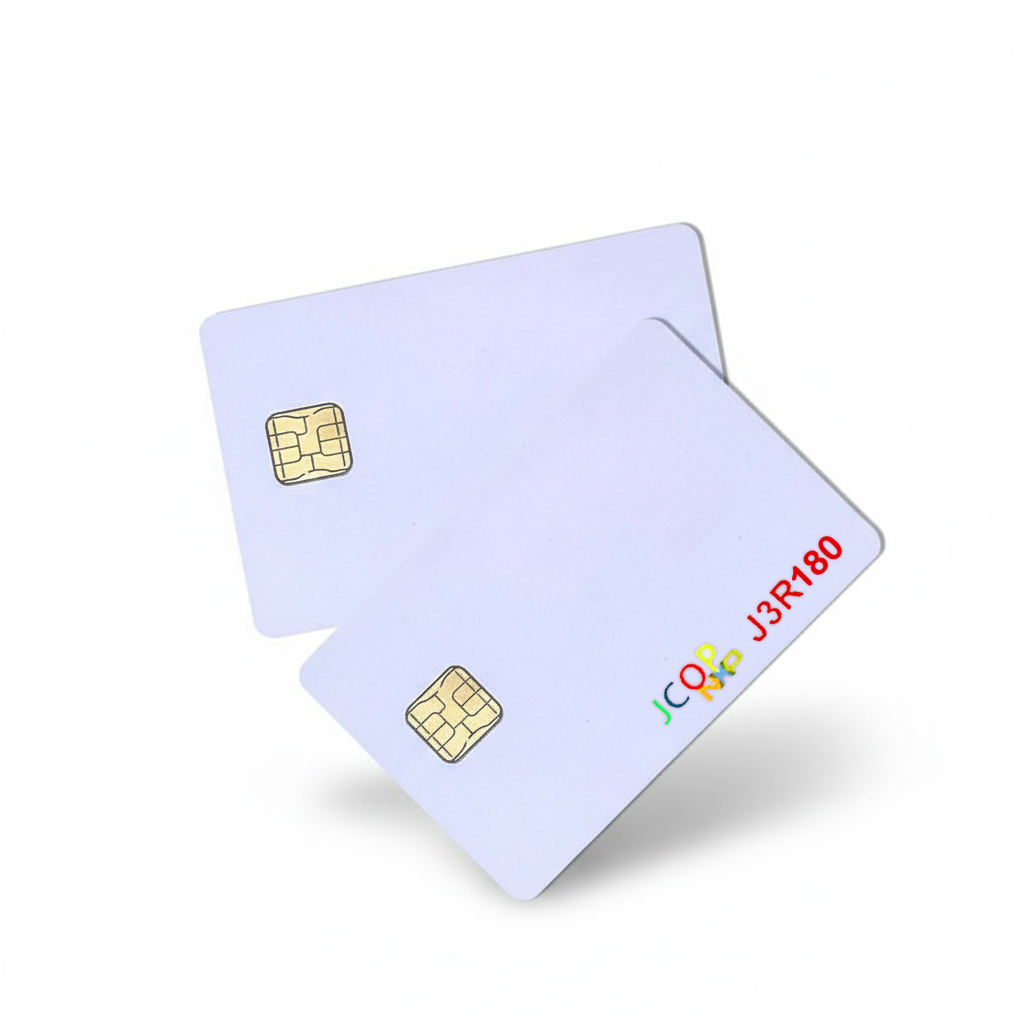

NXP JCOP Java Card OS for SmartMX3 Secure Microcontrollers

Buy NXP JCOP Java Card OS for SmartMX3 Secure Microcontrollers

Common Criteria EAL 6+ certified and EMVCO approved, JCOP 4 is optimized for use with NXP’s SmartMX3 family, a line of NXP JCOP Java Card OS for SmartMX3 Secure Microcontrollers with hardware accelerators. JCOP 4 supports every SmartMX3 crypto-algorithm and delivers best-in-class transaction performance and personalization time (with -50% reduced perso time compared to JCOP 3). Customers can develop their own Java Card applets based on JCOP and have them loaded to FLASH memory, or get a head start on design by using NXP’s available applets. The NXP offering for JCOP includes cost-effective solutions based on the first advanced CMOS040 technologies available on the market with more than >1B FLASH secure ICs sold.

JCOP 4

The Most Advanced Java Card OS for Secrure Identity Applications

NXP® JCOP® Java Card™ OS for SmartMX3® Secure Microcontrollers

NXP JCOP 4 is a secure, field-proven, vendor-independent OS for secure identity chip-card applications. It provides multi-application support for contact, contactless, and dual communication interfaces, and delivers benchmark transaction performance for security documents.

KEY FEATURES

• 1 billion devices powered by JCOP already deployed in the field
• Best-in-class performance with an e-Passport SAC transaction in less than 2 seconds
• Java Card v3.0.5 Classic Edition
• GlobalPlatform®
  • GP v2.2 ID Configuration
  • GP v2.2 Mapping Guidelines Configuration v1.0.1
  • GP v2.3 Common Implementation Configuration v2.0
• ISO 7816-3 (T=0, T=1)
• ISO 14443 (up to 848 kbps)
• Dual-interface support
• Support for DES, 3DES, AES, RSA, ECC, and SHA via dedicated hardware-based coprocessors
• Operating System located in ROM, boosting execution performance
• Available Non-Volatile Memory (NVM) for applications and personalization data up to 180 kB
• Highly flexible feature and applet selection for FLASH preloading for customer-specific products
• MIFARE Plus® / MIFARE Classic® EV1 or MIFARE® DESFire® EV2 contactless IC implementations
• Optional support:
  • Korean SEED support
  • Match-on-Card
• Common Criteria EAL 6+ certified
• EMVCo™ approved
• FIPS certified

---

KEY BENEFITS

• Unique platform supports convergence of secure identity, payment, and transport, increasing flexibility while reducing cost and complexity.
• Easy implementation with a full range of certified applets available for loading to FLASH, improving time-to-market while offering extensive customization capabilities.
• Optimized for high-performance OS initialization and personalization for excellent machine utilization and throughput.
• JCOP best-in-class transaction speed—from border control gates to contactless payment terminals and automatic fare collection systems—enabling a unique and differentiated customer experience.
• Trusted Java Card Open Platform OS based on current and future NXP secure ICs with the highest certification security level, ensuring reliable project deployment.

---

APPLICATIONS

• National eID
• Electronic Passport
• Electronic Driver’s License Card
• Electronic Health and Social Benefits Cards
• ePKI / eServices / Digital Signature Card
• Payment and Micro Payment
• Public Transport
• Logical and Physical Access

PRODUCT FEATURES

ITEM	JCOP 4
Java Card Version	3.0.5 Classic Edition
GlobalPlatform Version	2.3
Secure Channel Protocol (SCP)	SCP 01, 02 and 03
Delegated Management	Yes
Secure Box	Yes
Physical Unclonable Function (PUF)	Yes
FLASH (available before loading MIFARE, Applets, OS Addons)	up to 180kB
CMOS Technology	CMOS040
MIFARE Classic / Plus Implementation	EV1 – up to 4kB (optional)
MIFARE DESFire Implementation	EV2 – up to 8kB (optional)
SAC Electronic Passport	< 2s
MasterCard Transaction Time	< 200ms
DES/TDES	56b, 112b and 168b
AES	256b
RSA	4096b
ECC GF(p)	521b
SHA	128b, 224b, 256b, 384b and 512b
EMVCo Platform Approval	Yes
VISA Approvals	Yes
MasterCard PIC (TAS & CAST)	Yes
EMVCo CPA	Yes
Common Criteria for OS	EAL 6+ (AVA_VAN.5, ALC_FLR.1 and ASE_TSS.2)
Federal Information Processing Standard (FIPS)	140-2 level 3

APPLETS

Name	Specification & Features
Secure Identity Application Suite	ICAO BAC (CC EAL4+); ICAO SAC / EAC (PACEv2) (CC EAL5+); Secure Signature Creation Device – SSCD (CC EAL5+); National elD; European Citizen Card; PKI / Digital Signature; eIDAS; International Driving License; European Health Insurance Card; Fingerprint Match-On-Card; One Time Password
VISA	VSDC2.9, VSDC2.8.1G1
MasterCard M/Chip Advance	M/Chip Advance v1.2 Specification including Data Storage and MMAR
EMVCo CPA	EMV Common Payment; Application Specification v1 Dec 2005
