QFN Package – Quad Flat No-Lead Package (QFN)
Quad Flat No-lead (QFN) Package

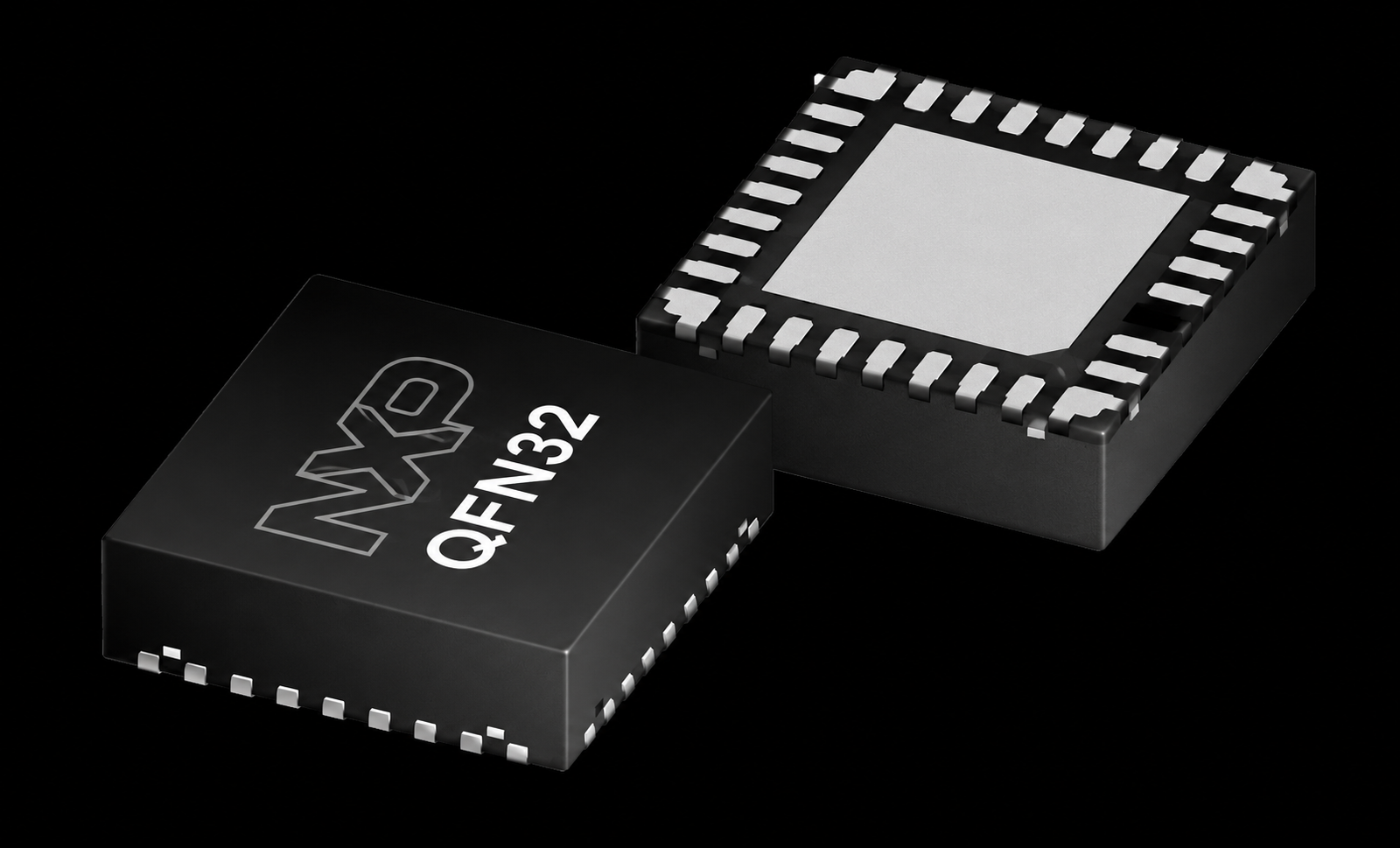

A QFN Package (Quad Flat No-Lead Package) is a compact surface-mount semiconductor package widely used in modern electronic devices due to its small footprint, excellent thermal performance, and reliable electrical characteristics. Unlike traditional leaded packages, the QFN package features exposed copper contact pads on all four sides and an exposed thermal pad on the bottom, enabling efficient heat dissipation, improved signal integrity, and high-density PCB designs. These advantages make QFN packages an ideal choice for applications ranging from automotive and industrial electronics to consumer and communication devices.
- Package: Quad Flat No-lead (QFN)
- Pin Count: 3 – 184
- Pitch: 0.35 – 1.7 mm
- Body Width: 0.6 – 12 mm
- Body Length: 1 – 12 mm
- Thickness: 0.3 – 2.2 mm
Quad Flat No-Lead Package (QFN)
A QFN Package (Quad Flat No-Lead Package) is a compact surface-mount semiconductor package designed to deliver excellent electrical and thermal performance while minimizing PCB footprint. Unlike Quad Flat Packages (QFPs), the QFN package features exposed copper pads around all four sides instead of protruding leads, enabling a smaller package size, lower profile, and improved electrical characteristics.
One of the key advantages of a Quad Flat No-Lead Package (QFN) is its exposed thermal pad located on the underside of the package. This pad can be soldered directly to the printed circuit board (PCB), providing efficient heat dissipation from the semiconductor die and enhancing overall device reliability.
- Mount: Surface
- Applications: All end equipment including automotive
| Package | Pin Count | Pitch | Body Width | Body Length | Thickness |
|---|---|---|---|---|---|
| Quad Flat No-lead (QFN) | 3 – 184 | 0.35 – 1.7 mm | 0.6 – 12 mm | 1 – 12 mm | 0.3 – 2.2 mm |
| Variations | Description |
|---|---|
| Dual Flat No-lead (DFN) | Has electrode contacts along two side of the package rather than all around the periphery. |
| Heatsink Low Profile Quad Flat Pack, No Lead (HLQFN) | Thermally-enhanced QFN with less body thickness. |
| Flip-chip Quad Flat Pack, No Lead (FCQFN) | Flip-chip interconnect option of QFN. |
| High-power Quad Flat Pack (HQFN) | Plastic, thermally-enhanced QFN. |
| Heatsink Ultra Thin Quad Flat Pack, No Lead (HUQFN) | Thermally-enhanced QFN with ultra-thin body width. |
| Heatsink Very Thin Quad Flat Pack No Lead (HVQFN) | Thermally enhanced version of VQFN. |
| Thermally Enhanced Thin Quad Flat Pack, No Lead (HXQFN) | Thermally-enhanced version of XQFN. |
| Thermally Enhanced Super Thin Quad Flat Pack, No Lead (HX2QFN) | Non-leaded version of HXQFN. |
| Thin Quad Flat Pack (TQFN) | QFN with thin body width. |
| Very Thin Quad Flat No Lead (VQFN) | Thinner version of TQFN. |
| Thin Quad Flat Pack, No Lead (XQFN) | Thin version of TQFN. |
| Thermally Enhanced Thin Quad Flat Pack, No Lead (X2QFN) | Super thin QFN with thermal enhancement |
QFN Package – Quad Flat No-Lead Package (QFN): 10 Essential Features & Advantages
Applications: Automotive electronics, consumer electronics, industrial equipment, communication devices, medical electronics, and other embedded systems. Surface-mount package with a compact footprint. No protruding leads for improved board space utilization. Exposed thermal pad for superior heat transfer. Excellent electrical performance with low inductance. Available in plastic-molded and air-cavity configurations. Suitable for high-density PCB designs.
