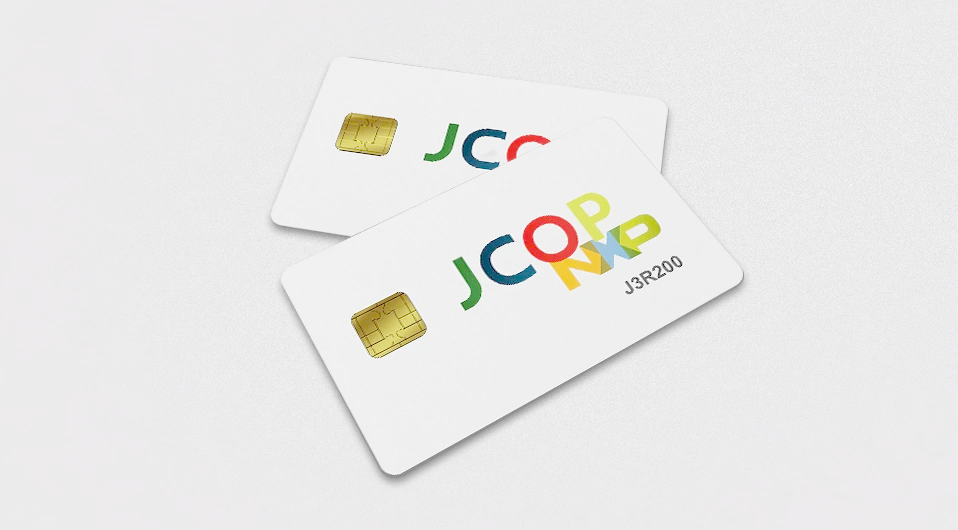

JCOP4 P71 Dual Interface

JCOP4 P71 Dual Interface

JCOP4 P71 Dual Interface Support SHA 256 ECC 521 RSA 4096 Smart Card JavaCard J3R150 J3R180 J3R200

• JCOP4 P71 Dual Interface Support: Supports both contact and contactless communication, enhancing flexibility and usability in various applications.
• Advanced Encryption Algorithms: Includes RSA 4096, SHA-256, and ECC 521, providing robust security for sensitive data and transactions.
• ISO 7810 Size: Complies with the standard ID-1 card size, ensuring compatibility with a wide range of card readers and systems.

Key Attributes

Attribute	Value	Attribute	Value
Chip	Original J3R180	Frequency	13.56 MHz
Communication Interface	ISO7816, ISO14443	Application	–
Special Features	DESFire EV2 4K	Model Number	JCOP J3R180
Place of Origin	Guangdong, China	Brand Name	Feitian
Chip	Original J3R180	Size	ISO 7810 (85.60 × 53.98 mm) / Customized
Material	Banking Grade PVC	Protocol	ISO7816, ISO14443
Standard	Java Card 3.0.5 Classic, Global Platform 2.3	Total NVM Size	210K
Total RAM Size	8K	User NVM Size	85K
User RAM Size	3K	Algorithm	RSA4096, SHA256, ECC521

Packaging and Delivery

Item	Value	Item	Value
Selling Units	Single Item	Single Package Size	8.56 × 5.4 × 0.08 cm
Single Gross Weight	0.006 kg	–	–

Lead time

Quantity (pieces)	1 – 100	101 – 5,000	> 5,000
Lead time (days)	10	20	To be negotiated

Customization options

• Java COS(+ from /Min. order: 5,000 pieces)
• Java Applet(+ from /Min. order: 5,000 pieces)
• Personalization(+ from /Min. order: 5,000 pieces)
• Card Printing(+ from /Min. order: 5,000 pieces)

Product descriptions from the AFTINDIA supplier

Features – Specification

The functions marked * are not supported by default. If you need these functions, please contact us before placing order.

If you don’t need the card to support DESFire EV2 4K, the user available NVM Size can be up to 169K.

Model Name	JCOP  J3R180
OS Certification	FIPS 140-2 Level 3
	CC EAL6+
Chip Certification	CC EAL6+
Secure box	Yes
CPU	8bit
Physical Storage
NVM Type
Total NVM Size	210K
Total RAM Size	8K
User NVM Size	85K
User RAM size	3K
Algorithm
RSA 2048	Yes
RSA 4096	Yes
AES	Yes
SHA-1	Yes
SHA-256	Yes
SHA-384	Yes
SHA-512	Yes
MD5	No
3DES (ECB, CBC)	Yes
KOREAN SEED	Yes
ECC FP	160 bits to 521 bits
Standard Compliance
Java Card™ 3.0.5	Yes
Java Card™ 3.0.4	Yes
GlobalPlatform 2.3	Yes
GlobalPlatform 2.2.1	Yes
EMV ICC Specification for Payment Systems 4.3	Yes
EMV Contactless Specifications for Payment Systems (Book D) 2.6	Yes
EMVCo	Yes
Communication Protocol
ISO7816 T=0*	No(Customizable)
ISO7816 T=1	Yes
ISO14443 T=CL Type A	Yes
ISO14443 T=CL Type B	No
Contactless VHBR	3.2Mbits/s
Mifare*	No (Customizable)
DESFire EV2 4K	Yes
JCRE Features
APDU Buffer Size	261 bytes to 2048 bytes
Transaction Size	2048 up to 64K
Extended APDU	Yes
Logical Channels	1(Default) / 4*
GP Secure Channel Protocol	SCP02(Default)/ SCP 03*
Garbage Collector	Yes
Applet deletion	Yes
Product Configurations – Add Ons(Optional)
Module	Match On Card(MOC) ID3 Neurotechnology*
	MIFARE DESFire EV2 4K
	MIFARE Plus EV1 4K*
Application*	PIV
	FIDO
	OTP
	ChipDoc Suite
	eDoc Applet Suite
	MasterCard M/Chip
	VISA VSDC2.9
	CPA1.0
	DPAS v.10
	AMEX 4.4/Expresspay 4.3
Customization
Feature	Dual Interface,Contact,Contactless
Card Printing	4/6 colours Offset Printing,UV Printing
Card Surface Process	Glossy Finish, Matte Finish, Other Card Processing Technology
	(Only available for Offset Printing )
Magnetic Stripe	Hi-Co, Lo-Co
Others	ATR
	SIM-size Cutting
	Jave Token -Java Card in USB Key Format
	One Time Password Card
Application
e-Government,Banking and Finance,Public Transportation, Access Control,Mobile,Loyalty Card,PIV,FIPS
Customized support	Customized logo

Customization

Certifications

No.	Certification / Compliance	Issuing Organization
1	FIPS 140-2 Consolidated Validation Certificate No. 0028	U.S. NIST & Communications Security Establishment Canada (CSE)
2	Common Criteria (CC) EAL5+ Certificate	SERTIT / Common Criteria Certification Body
3	PCI PTS Transaction Security Testing Program Approval	PCI Security Standards Council
4	EMVCo Letter of Approval – Contact Terminal Level 2	EMVCo
5	Visa Product Approval Certificate	Visa
6	Mastercard Terminal Quality Management Statement of Compliance	Mastercard
7	Brazilian PKI Certification Process for Smart Card Reader	ISTEC
8	ISO 14001 Environmental Management System Certification	NQA (National Quality Assurance)
9	FIDO Level 2 Authenticator Certification	FIDO Alliance
10	GlobalPlatform Compliance Qualification Certificate	GlobalPlatform
