J3R452SID JCOP 4.5 P71D600

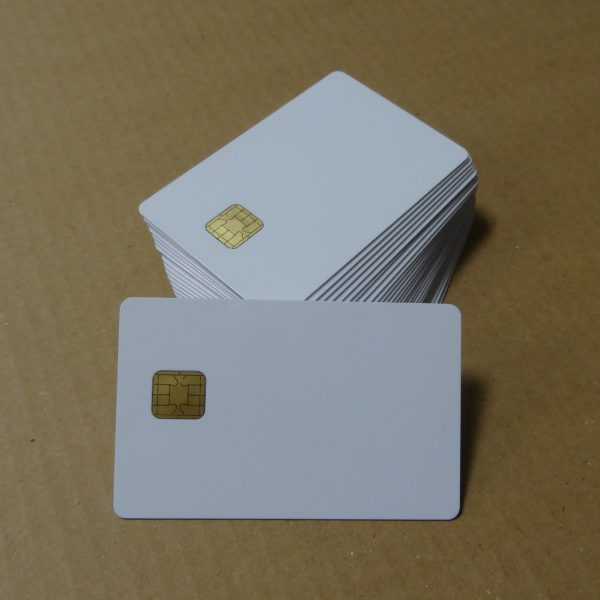

J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface Java Card Secure Element

Product Description

J3R452SID (JCOP 4.5 P71D600)

The J3R452SID JCOP 4.5 P71D600 Smart Card is a high-security Dual Interface Java Card and contactless smart card developed for advanced authentication, digital identity, secure payments, PKI, and enterprise security applications. Built on the NXP P71D600 Secure Element with a 16-bit SmartMX3 processor using 40nm CMOS technology, this smart card delivers industry-leading security, cryptographic performance, and Java Card compatibility.

Featuring 450 KB Flash memory, 12.3 KB RAM, Java Card 3.0.5 Classic, GlobalPlatform 2.3, ISO7816 contact, and ISO14443 contactless interfaces, the J3R452SID JCOP 4.5 P71D600 Smart Card is an ideal solution for secure identity management, access control, digital certificates, IoT security, banking, government ID, and enterprise authentication.

• P71D600
• Use CMOS 40nm process
• Use 16bit SmartMX3 processor
• Provide 450KB Flash storage space FLASH
• Provide 12.3KB RAM memory space
• Provide DES/AES symmetric co-processor
• Provide Fame3/RSA/ECC asymmetric co-processor
• Support ISO14443 contactless interface
• Support ISO7816 contact interface
• JCOP 4.5 (JavaCard 3.0.5 Classic)
• Passed Common Criteria EAL 6+ certification
• Passed EMVCo Platform certification
• Passed FIPS 140-3 Level 3 certification
• Compliant with Java Card v3.0.5 Classic standard
• Compliant with GlobalPlatform v2.3 standard
• Support T=1/T=CL
• Support SHA1/SHA hash algorithms
• Support DES symmetric algorithm: 56/112/168 bits
• Support AES symmetric algorithm: 128/192/256 bits
• Support RSA asymmetric algorithm: 512~4096 bits
• Support ECC asymmetric algorithm: 128~521 bits
• Support EdDSA asymmetric algorithm: Ed25519 (RFC 8032)
• Support Diffie-Hellman(DH) key exchange algorithm: Curve25519/Curve448 (RFC 7748)
• Secure ID (SID) Series
• Provide ECDSA/ECDH/Ed25519/Curve25519/Curve448 algorithms
• Provide On Card Key Generation feature
• The state is in INITIALIZED
• T=1
• SCP02
• no Mifare applet (if need , will be customized order)

---

Key Features

• Model: J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface
• Based on NXP P71D600 Secure Element
• Advanced 16-bit SmartMX3 Processor
• Manufactured using 40nm CMOS Process
• 450 KB Flash Memory
• 12.3 KB RAM
• Java Card 3.0.5 Classic
• GlobalPlatform 2.3
• ISO7816 Contact Interface
• ISO14443 Contactless Interface
• Supports T=1 and T=CL
• Secure Channel Protocol SCP02
• Secure ID (SID) Series
• On-Card Key Generation
• Card State: INITIALIZED

---

Advanced Security Features

The J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface includes enterprise-grade hardware security with dedicated cryptographic co-processors.

Symmetric Cryptography

• DES (56 / 112 / 168-bit)
• AES (128 / 192 / 256-bit)

Asymmetric Cryptography

• RSA (512–4096-bit)
• ECC (128–521-bit)
• ECDSA
• ECDH
• Ed25519 (RFC 8032)
• Curve25519
• Curve448 (RFC 7748)
• Diffie-Hellman (DH)

Hash Algorithms

• SHA-1
• SHA Family

---

Certifications

The J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface complies with internationally recognized security standards.

• Common Criteria EAL6+
• EMVCo Platform Certified
• FIPS 140-3 Level 3 Certified
• Java Card v3.0.5 Classic
• GlobalPlatform v2.3

---

Technical Specifications

Specification	Details
Product	J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface
Secure Element	NXP P71D600
Processor	16-bit SmartMX3
Process Technology	40nm CMOS
Flash Memory	450 KB
RAM	12.3 KB
Java Card	Version 3.0.5 Classic
GlobalPlatform	Version 2.3
Contact Interface	ISO7816
Contactless Interface	ISO14443
Communication	T=1 / T=CL
Secure Channel	SCP02
Card Status	INITIALIZED
MIFARE Applet	Not included (Custom development available)

---

Applications

The J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface is suitable for:

• PKI Authentication
• Enterprise Identity Management
• Secure Login & MFA
• Government ID Cards
• Employee Access Cards
• Banking & EMV Applications
• Digital Signature Solutions
• Healthcare Cards
• IoT Device Authentication
• Secure Cloud Authentication
• Public Transportation
• NFC Security Applications

---

Why Choose the J3R452SID JCOP 4.5 P71D600 Smart Card?

The J3R452SID JCOP 4.5 P71D600 Smart Card Dual Interface combines advanced Java Card technology, strong cryptographic support, dual-interface connectivity, and globally recognized security certifications. Its powerful SmartMX3 architecture and comprehensive algorithm support make it an excellent choice for organizations deploying secure authentication, digital identity, and contactless applications.

Note: This card is supplied in the INITIALIZED state and does not include a MIFARE applet by default. MIFARE functionality can be provided through a customized order.
