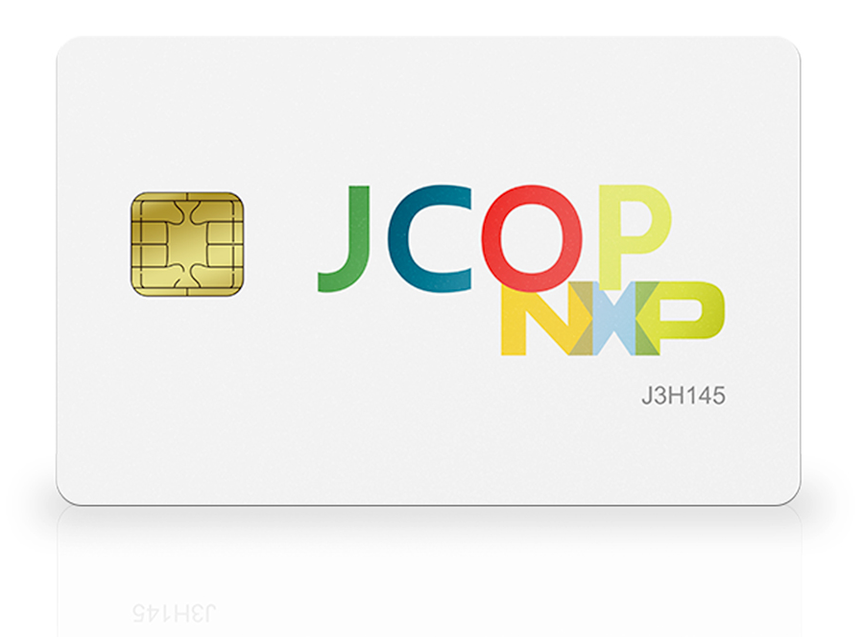

J3H145 JCOP Dual Interface

J3H145 JCOP Dual Interface Smart Card

J3H145 JCOP Dual Interface Support RSA4096 ECC Smart Card Java Card (J3H145)

Need a smart card that’s seriously secure and genuinely flexible? The J3H145 JCOP Dual Interface has you covered. It works both with a physical reader (contact) and wirelessly at 13.56 MHz (contactless), so it fits right into a wide range of setups — from access control to banking to e-government systems. Under the hood, it packs RSA 4096-bit encryption, ECC, and AES into a banking-grade PVC card. Simple to deploy, trusted by enterprises worldwide.

Key Attributes

Attribute	Value	Attribute	Value
Frequency	13.56 MHz	Communication Interface	Contact and Contactless
Special Features	RSA4096	Place of Origin	India
Brand Name	Feitian	Chip	Original J3H145
Size	ISO 7810 (85.60 × 53.98 mm) / Customized	Material	Banking Grade PVC
Protocol	ISO7816, ISO14443	Standard	Java Card 3.0.4, GlobalPlatform 2.2.1
Total NVM Size	145K	Total RAM Size	4K
User NVM Size	122K	User RAM Size	2.56K
Algorithm	RSA, AES, SHA512, 3DES, ECC

NXP JCOP3 J3H145 Java Card 3.0.4 Dual-Interface

NXP J3H145 Dual Interface Java card – 144k

• Built on Java Card 3.0.4 Classic Platform
• GlobalPlatform 2.2.1
• Dual-Interface (Contact and Contactless)
• 144K Byte User Memory
• Supports SCP03* and ECDSA
• Ideal for Multiple Applications
• Common Criteria EAL 6+ certified

Specification

Model Name	JCOP J3H145
OS Certification	FIPS 140-2 Level 3
	CC EAL5+
Chip Certification	CC EAL6+
Secure box	Yes
CPU	8bit
Physical Storage
NVM Type
Total NVM Size	145K
Total RAM Size	4K
User NVM Size	122K
User RAM size	2.56K
Algorithm
RSA 2048	Yes
RSA 4096	Yes
AES	Yes
SHA-1	Yes
SHA-256	Yes
SHA-384	Yes
SHA-512	Yes
MD5	No
3DES (ECB, CBC)	Yes
KOREAN SEED	No
ECC FP	160 bits to 521 bits
Standard Compliance
Java Card™ 3.0.4	Yes
GlobalPlatform 2.2.1	Yes
Communication Protocol
ISO7816 T=0	No
ISO7816 T=1	Yes
ISO14443 T=CL Type A	Yes
ISO14443 T=CL Type B	No
Mifare	No
JCRE Features
APDU Buffer Size	261 bytes
Transaction Size	2048 up to 64K
Extended APDU	Yes
Logical Channels	4
GP Secure Channel Protocol	SCP01* / SCP02(Default) /SCP 03*
Garbage Collector	Yes
Applet deletion	Yes
Customization
Feature	Dual Interface,Contact,Contactless
Card Printing	4/6 colours Offset Printing,UV Printing
Card Surface Process	Glossy Finish, Matte Finish, Other Card Processing Technology (Only available for Offset Printing )
Magnetic Stripe	Hi-Co, Lo-Co
Others	ATR SIM-size Cutting Jave Token -Java Card in USB Key Format One Time Password Card
Application
e-Government,Banking and Finance,Public Transportation, Access Control,Mobile,Loyalty Card

*  These functions are not supported by default. If you need these functions, please contact us before placing order.

Key Specification

Works both ways

Contact and contactless in one card — maximum flexibility for any reader setup.

Rock-solid security

RSA 4096 + ECC encryption, certified at CC EAL5+ (OS) and CC EAL6+ (chip).

Generous memory

145K NVM total with 122K user space — plenty of room for apps and data.

Fully customizable

Supports custom Java applets, card printing, personalization, and more.

Certifications

• FIPS 140-2
• OS — Level 3
• CC EAL5+
• OS certification
• CC EAL6+
• Chip certification

Supported algorithms

• RSA 2048
• RSA 4096
• AES ECC (160–521 bit)
• SHA-1
• SHA-256
• SHA-384
• SHA-512
• 3DES (ECB, CBC)

Customization options

Available with custom Java COS, Java applets, personalization, and 4/6-colour card printing (min. order quantities apply). Magnetic stripe, SIM-size cutting, OTP card, and USB token formats also available on request.

Sold by AFTINDIA — Global Supplier. Available in India with worldwide delivery.
