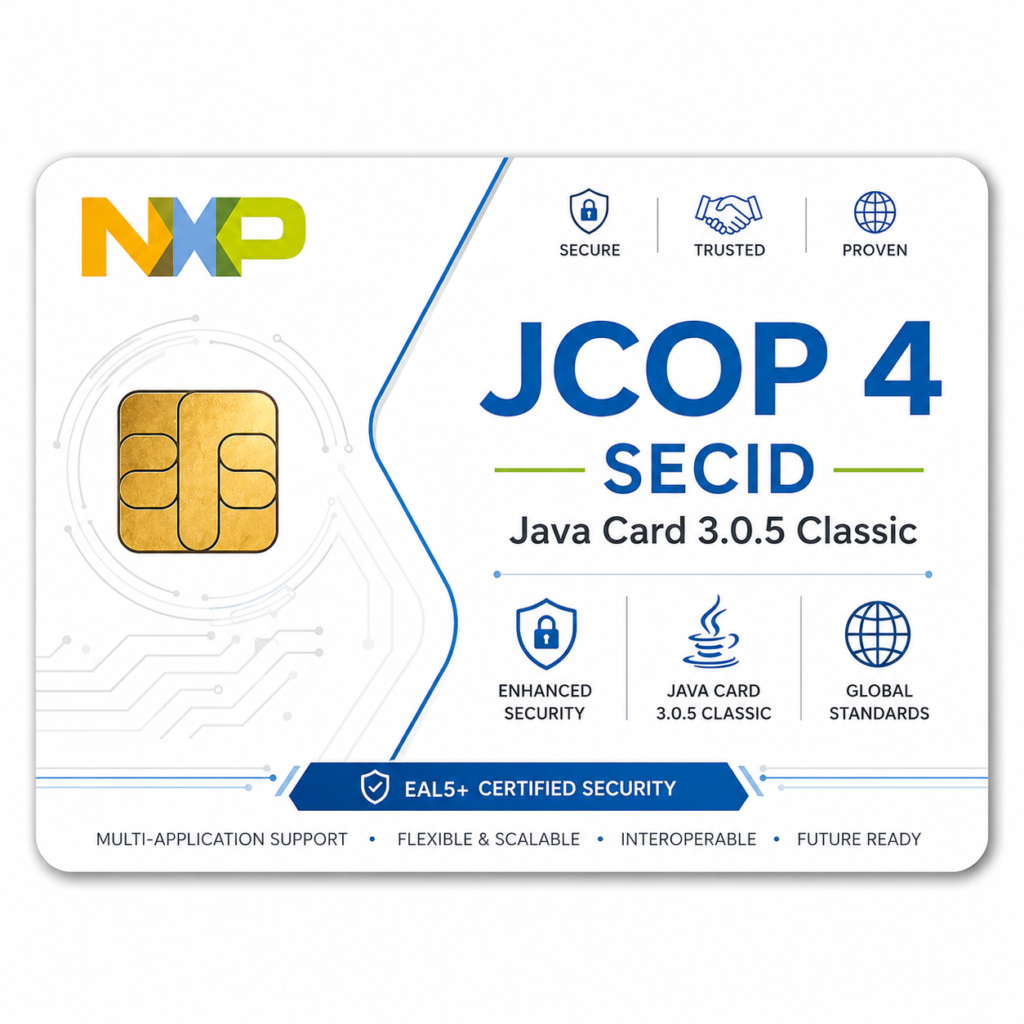

NXP JCOP 4 SECID Java Card 3.0.5 Classic

Buy NXP JCOP 4 SECID Java Card 3.0.5 Classic | SmartMX3 P71 Secure Element Java Card for eID, ePassport & PKI

NXP JCOP 4 SECID Java Card 3.0.5 Classic is one of the world’s most advanced secure Java Card platforms designed for digital identity, eGovernment, banking, healthcare, transportation, and secure access applications. Built on the powerful NXP SmartMX3 P71D321 Secure Element, the platform combines Java Card 3.0.5 Classic, GlobalPlatform 2.3, and Common Criteria EAL6+ certified hardware to deliver outstanding security, performance, and interoperability.

If you are looking to Buy NXP JCOP 4 SECID Java Card 3.0.5 Classic, this platform provides enterprise-grade cryptography, secure applet management, high-speed contact and contactless communication, and long-term reliability for global identity and payment projects.

The JCOP® 4 operating system is optimized for secure deployment of multiple applications on a single smart card, enabling governments, financial institutions, enterprises, and system integrators to build next-generation secure identity ecosystems while protecting sensitive personal information (PII).

---

Why Buy NXP JCOP 4 SECID Java Card 3.0.5 Classic?

The NXP JCOP4 SECID Java Card 3.0.5 Classic platform is engineered for organizations requiring maximum security, flexible application development, and future-proof authentication technologies.

Key Advantages

• Java Card 3.0.5 Classic Operating System
• GlobalPlatform 2.3 compliant
• Built on NXP SmartMX3 P71D321 Secure Microcontroller
• Common Criteria CC EAL6+ Certified
• EMVCo Certified Secure Element
• Contact & Contactless Dual Interface
• RSA up to 4096-bit
• ECC up to 571-bit
• AES-128/192/256 Encryption
• DES / 3DES Hardware Acceleration
• SHA-1, SHA-224, SHA-256, SHA-384 & SHA-512
• True Random Number Generator (TRNG)
• Physical Unclonable Function (PUF)
• Secure Applet Download
• Multi-Application Smart Card Platform
• High-Speed RF Performance
• Long Data Retention (25+ Years)
• Minimum 500,000 Write/Erase Cycles

---

Built on the NXP SmartMX3 Platform

The JCOP 4 SECID platform runs on the latest SmartMX3 P71D321 Secure Controller, delivering:

• High-performance 16/32-bit RISC CPU
• Advanced IntegralSecurity 3.0 Architecture
• Full Flash Architecture
• Hardware Cryptographic Accelerators
• Enhanced RF Communication
• Secure Boot & Code Signature Verification
• Anti-Tamper Protection
• Side Channel Attack Resistance (SPA/DPA)
• Fault Injection Protection
• PKCC Protection
• Secure Memory Management

The combination of SmartMX3 hardware and JCOP 4 software significantly reduces development time while providing one of the industry’s highest levels of security.

---

Security Features

The NXP JCOP 4 SECID Java Card 3.0.5 Classic is designed to protect highly sensitive government, financial, healthcare, and enterprise credentials.

Advanced Cryptography

• RSA Key Generation up to 4096-bit
• ECC up to 571-bit
• ECDSA
• Diffie-Hellman
• ECDH
• AES-128 / AES-192 / AES-256
• DES
• 2DES
• Triple DES (3DES)
• SHA-1
• SHA-224
• SHA-256
• SHA-384
• SHA-512
• CRC16
• CRC32

Hardware Security

• Common Criteria CC EAL6+
• EMVCo Certified
• FIPS 140-2 Ready
• Physical Unclonable Function (PUF)
• True Random Number Generator (AIS31 Compliant)
• Deterministic Random Number Generator
• Secure Channel Protocol SCP01, SCP02 & SCP03
• Code Signature Verification
• Secure Native Execution
• Secure Boot Process
• Timing Attack Protection
• Differential Power Analysis (DPA) Protection
• Simple Power Analysis (SPA) Protection

---

Java Card & GlobalPlatform Features

The platform fully supports modern Java Card application development.

Operating System Features

• Java Card 3.0.5 Classic
• GlobalPlatform 2.3
• GlobalPlatform ID Configuration
• GlobalPlatform Common Implementation Configuration
• GlobalPlatform Financial Configuration
• Inter-Applet PIN Sharing
• Loader Service
• Secure In-field Applet Installation
• Multi-Application Support
• Secure Lifecycle Management

---

Memory Options

Available EEPROM configurations include:

Model	Memory	Application
J2R110	110 KB	SECID
J2R150	150 KB	EMV / SECID
J2R180	180 KB	SECID
J3R110	110 KB	SECID
J3R150	150 KB	EMV / SECID
J3R180	180 KB	SECID

Additional specifications include:

• ROM up to 192 KB
• RAM up to 12 KB
• EEPROM up to 200 KB
• Data Retention: 25 Years
• Endurance: 500,000 Cycles

---

Contact & Contactless Interface

The card supports both contact and NFC Java Card communication.

NFC Java Card Contact Interface

• ISO/IEC 7816
• T=0 Protocol
• T=1 Protocol
• Operating Voltage 1.62V–5.5V

NFC Java Card Contactless Interface

• ISO/IEC 14443 Type A
• T=CL Protocol
• 106 kbps
• 212 kbps
• 424 kbps
• 848 kbps
• VHBR up to 3.2 Mbps

---

Supported Standards

The NXP JCOP 4 SECID Java Card 3.0.5 Classic supports international smart card standards including:

• Java Card 3.0.5 Classic
• GlobalPlatform 2.3
• ISO/IEC 7816
• ISO/IEC 14443
• ISO 18013
• ICAO 9303
• EMV 4.3
• EMV Java Card Contactless 2.6
• European Citizen Card EN15480
• European Health Insurance Card
• PIV
• PKI
• Secure Messaging
• SAC
• PACE
• BAC
• EAC

---

Supported Applications

The NXP JCOP 4 SECID Java Card 3.0.5 Classic is ideal for secure identity and payment deployments worldwide.

Government Identity

• National eID Cards
• Electronic Passport (ePassport)
• Electronic Driving License
• Resident Identity Cards
• Immigration Documents
• Digital Citizen Identity

Financial Services

• EMV Payment Cards
• Banking Authentication
• Mobile Payment
• Secure Payment Applications

Enterprise Security

• PKI Authentication
• Corporate ID Cards
• Logical Access Control
• Physical Access Control
• Secure Login
• Digital Certificates

Healthcare

• Electronic Health Records (EHR)
• Electronic Medical Records (EMR)
• Health Insurance Cards

Emerging Applications

• Cryptocurrency Hardware Wallets
• Secure Digital Identity
• Digital Signatures
• Biometric Match-on-Card
• eGovernment Services
• Public Key Infrastructure (PKI)

---

MIFARE Support

The platform supports optional MIFARE technologies including:

• MIFARE DESFire EV2
• MIFARE Plus EV1
• MIFARE Classic Compatibility
• MIFARE FleX

This enables secure transportation, access control, campus cards, and multi-application deployments.

---

Available Part Numbers

EMV Java Card Versions

• J2R100
• J2R150
• J2R200
• J3R100
• J3R150
• J3R200

SECID Versions

• J2R110
• J2R150
• J2R180
• J3R110
• J3R150
• J3R180

Secure Controller:

SmartMX3 P71D321

---

Technical Specifications

Feature	Specification
Java Card Version	Java Card 3.0.5 Classic
GlobalPlatform	Version 2.3
Secure Element	SmartMX3 P71D321
Security Certification	CC EAL6+, EMVCo
Interface	Contact & Contactless
Contact Standard	ISO/IEC 7816
Contactless Standard	ISO/IEC 14443 Type A
RSA	Up to 4096-bit
ECC	Up to 571-bit
AES	128/192/256-bit
DES	DES / 2DES / 3DES
Hash Algorithms	SHA-1, SHA-224, SHA-256, SHA-384, SHA-512
Random Number Generator	TRNG + DRNG
EEPROM	Up to 200 KB
ROM	Up to 192 KB
RAM	Up to 12 KB
Data Retention	25 Years
Endurance	500,000 Cycles

---

Buy NXP JCOP 4 SECID Java Card 3.0.5 Classic

Whether you are developing electronic passports, national ID cards, PKI tokens, secure authentication devices, EMV payment cards, healthcare cards, access control systems, or enterprise identity solutions, the NXP JCOP 4 SECID Java Card 3.0.5 Classic offers industry-leading security, outstanding performance, and proven interoperability.

Buy Java Card Online from Aftindia. Buy Genuine NXP JCOP 4 SECID Java Card 3.0.5 Classic smart cards with multiple memory options, global shipping, technical support, and customization services for government, enterprise, OEM, and system integration projects.

Buy Genuine, Original, and Authentic NXP JCOP 4 SECID Java Card 3.0.5 Classic from a Trusted AFTINDIA NXP Smart Card Supplier offering Certified, CC EAL6+, Premium, and Highly Secure smart card solutions for government, banking, enterprise, and digital identity applications. Built for Enterprise-Grade security and Best-in-Class performance, this Advanced, Future-Proof Java Card platform delivers High Performance Cryptographic Smart Card capabilities for PKI, ePassport, eID, payment, and secure authentication systems. Available with Official specifications, OEM support, Wholesale pricing, Ready Stock, and Worldwide shipping, the NXP JCOP 4 SECID Java Card is the ideal choice for organizations seeking reliable, scalable, and globally recognized smart card technology.

---
