F20 Smart Payment Terminal

F20 Smart Payment Terminal

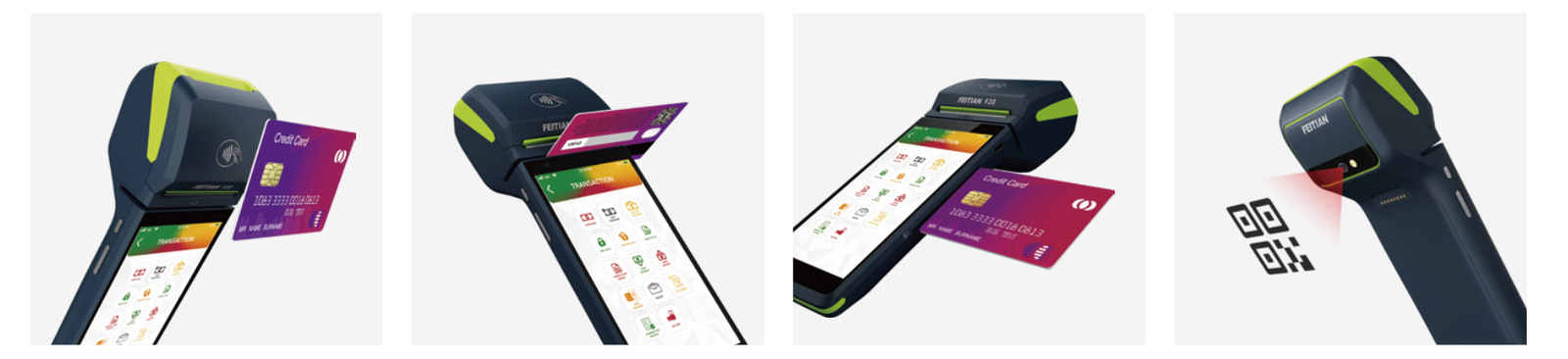

Buy F20 Smart Payment Terminal – F20 All in one Financial Terminal

Buy F20 Smart Payment Terminal from Aft India. F20 Smart Payment Terminal is All-in-one Financial Terminal Android14, high-speed printer, high-voltage battery, smart design, a smart wireless terminal, F20 Smart Payment Terminal. MSR + IC + NFC + QR. 5.5” HD LCM. 8MP + 2MP Cameras. 4G + 3G + 2G. Wi-Fi 5: 2.4&5GHz. BT 5.0. Android 14. Retail. Supermarket.

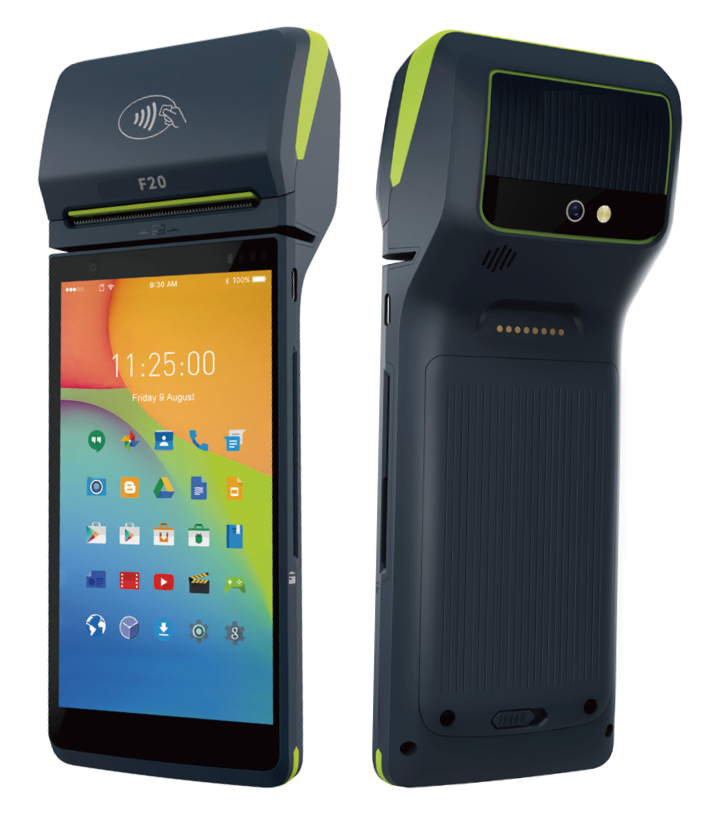

F20 All in one Financial Terminal





SPECIFICATIONS

SPECIFICATIONS
Operating System	Android 14
Processor	Quad-Core 4*A53@2.0GHz
Memory	RAM: 2GB + ROM: 16GB
Communications	4G (LTE-FDD/LTE-TDD) + 3G (WCDMA) + 2G (GSM),Wi-Fi 5: 2.4&5GHz, Bluetooth 5.0/BLE
Location	GPS, BDS, Galileo, GLONASS, QZSS, SBAS
Display	5.5 inch, HD IPS LCD, 1440*720 Pixel, Multi-touch
Cameras	Rear: 8MP AF with Flash LEDFront: 2MP FFSupport 1D/2D barcode
Printer	High-speed thermal printer, Paper size: 58mm*40mm
Battery	7.6V/2500mAh (Equal to 3.8V/5000mAh)
Magnetic Card Reader	ISO/IEC 7811, ISO/IEC 7813, Track 1/2/3, Bi-directional swiping
IC Card Reader	ISO/IEC 7816, Conform to EMV L1/L2
NFC	13.56MHz, ISO/IEC 14443, ISO18092, Type A&B, Felica, Mifare card
Card Slot	SIM2 + PSAM1
Peripheral Ports	Type C*1 (USB2.0, OTG)
Adapter	Input: 100-240V AC, 50/60Hz 0.35A    Output: 5V DC/2.0A
Physical	212.6mm (L)*79.1mm (W)*51.9mm (H)
Weight	427g
Environment	Operating Temperature: -10°C – 50°C (14°F–122°F)Storage Temperature: -20°C – 70°C (-4°F–158°F)Relative Humidity: 5%-96% (Non-Condensing)
Accessories	Adapter*1, USB Cable(only charging)1, Manual1
Certifications	PCI, EMV L1&L2, EMV Contactless L1, Paypal, PayWave, Amex, Discover, JCB, Pure, QUICS, Rupay, NSICC, TQM, CPACE, AuspayNET, EFT POS, INTERAC, NAPAS, RoHS, CE, FCC, PTCB, EAC, BIS, ATEX, WEEE, CB, WPC, DGM, UN38.3, MSDS, NTRA-VOC, GSMA, Telec, JATE, ANRT, CMC, Google Smart Tap, RNIB, EAA

Optional Items

CamerasFront Camera: NoneRear Camera: 5MP/FF/AF, 2MP/FF	FiscalUSB OR UART POGO PIN Connector(Type C only charging)	Charging Cradle5V/2A
SensorG-sensor	USB CableType C (data/damping)	Type C USB to RJ 45 Adapter100 Mbps Ethernet LAN
TF-CardMicroSD (TF Max support 256GB ) *1	Multi-function Battery CoverType C1, RJ451	Screen ProtectorHydrogel film
Card SlotSIM1 + PSAM2	Multi-function Dock LiteType C1, RJ451, RJ111, Type A2	Silicone CoverCustomized colors
FingerprintBiometric fingerprint module(or PCBA that supports fingerprint function)	Multi-function DockType C1, RJ451, RJ111,Type A2, Scanner*1	POS BracketDesktop bracket
Battery Options7.6V/2750mAh (Equal to 3.8V/5500mAh)		Cash BoxCustomized, 6V/1A

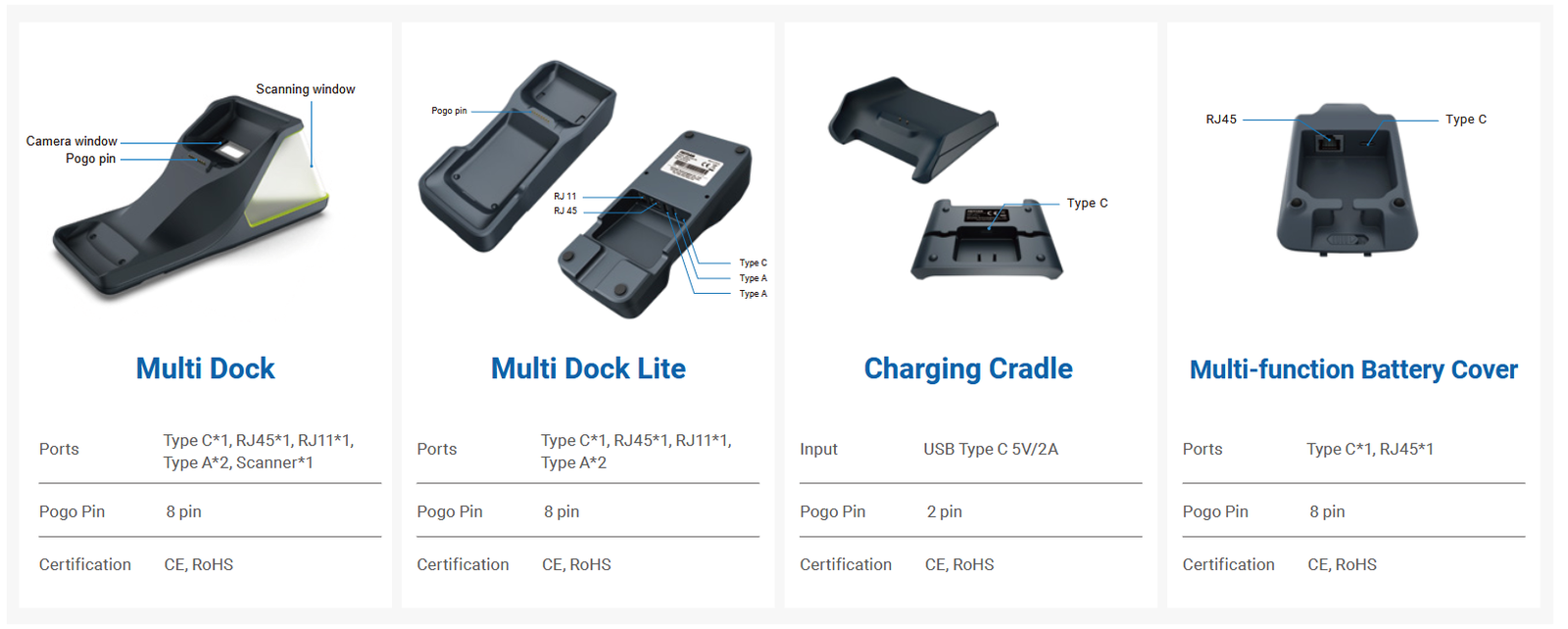

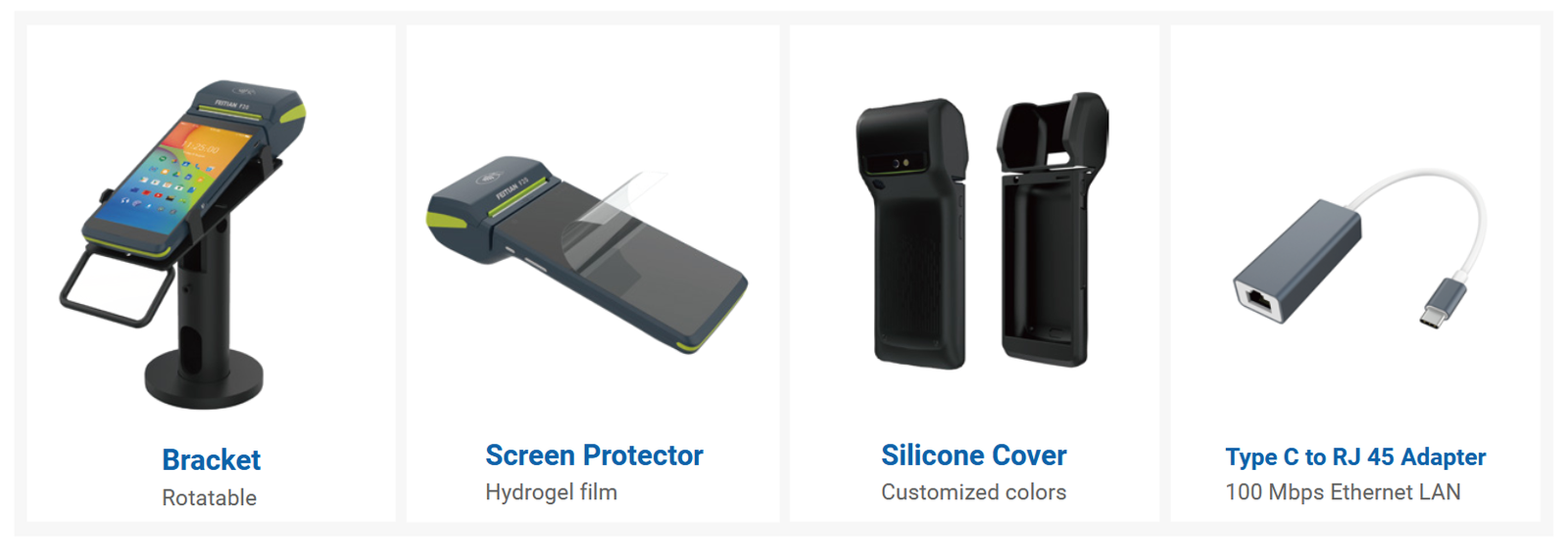

F20 Options and Accessories

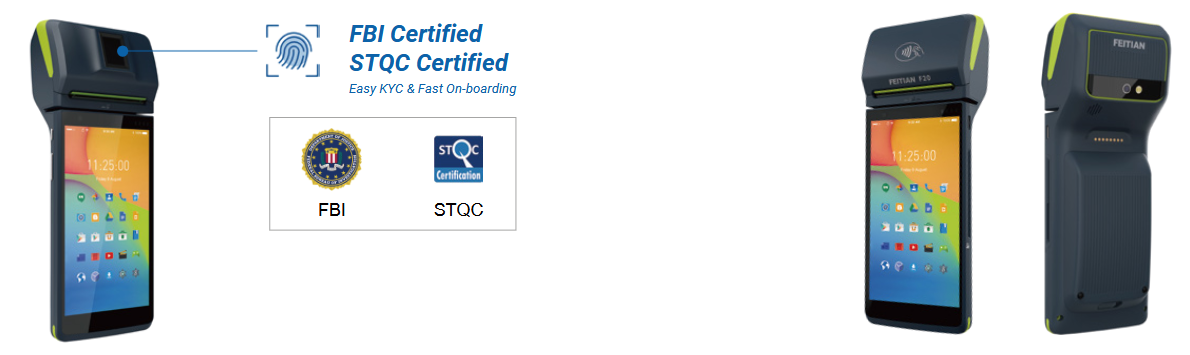

F20 FP Fingerprint

Fingerprint: Semiconductor capacitive biometric fingerprint module
Physical: 212.6mm (L)*79.1mm (W)*55.5mm (H)
Weight: 430g

F20 Fiscal

Fiscal: USB OR UART POGO PIN Connector (Type C only charging)
Physical: 212.6mm (L)*79.1mm (W)*51.9mm (H)
Weight: 440g
