SAS V2 Duplicator

SAS V2 Duplicator – Buy SAS V2 Duplicator/Cloner/Copier/Replication/Duplication

Buy SAS V2 Duplicator. This is the SAS V2 Duplicator, model (KD25/35SASV2). The transfer speed is approximately twice as fast as previous models! Data copy and erase machine compatible with SAS HDDs/SSDs. Compatible HDD/SSD: 3.5 SAS HDD, 2.5 SAS HDD, 2.5 SAS SSD, 3.5″ SATA HDD, 2.5″ SATA HDD, 2.5″ SATA SSD, 3.5 IDE HDD, 2.5 IDE HDD, 2.5 IDE SSD.

Compatible HDD/SSD:

• 3.5 SAS HDD
• 2.5 SAS HDD
• 2.5 SAS SSD

• 3.5″ SATA HDD
• 2.5″ SATA HDD
• 2.5″ SATA SSD

• 3.5 IDE HDD
• 2.5 IDE HDD
• 2.5 IDE SSD

Features and Characteristics:

• Clone function
• Erase function

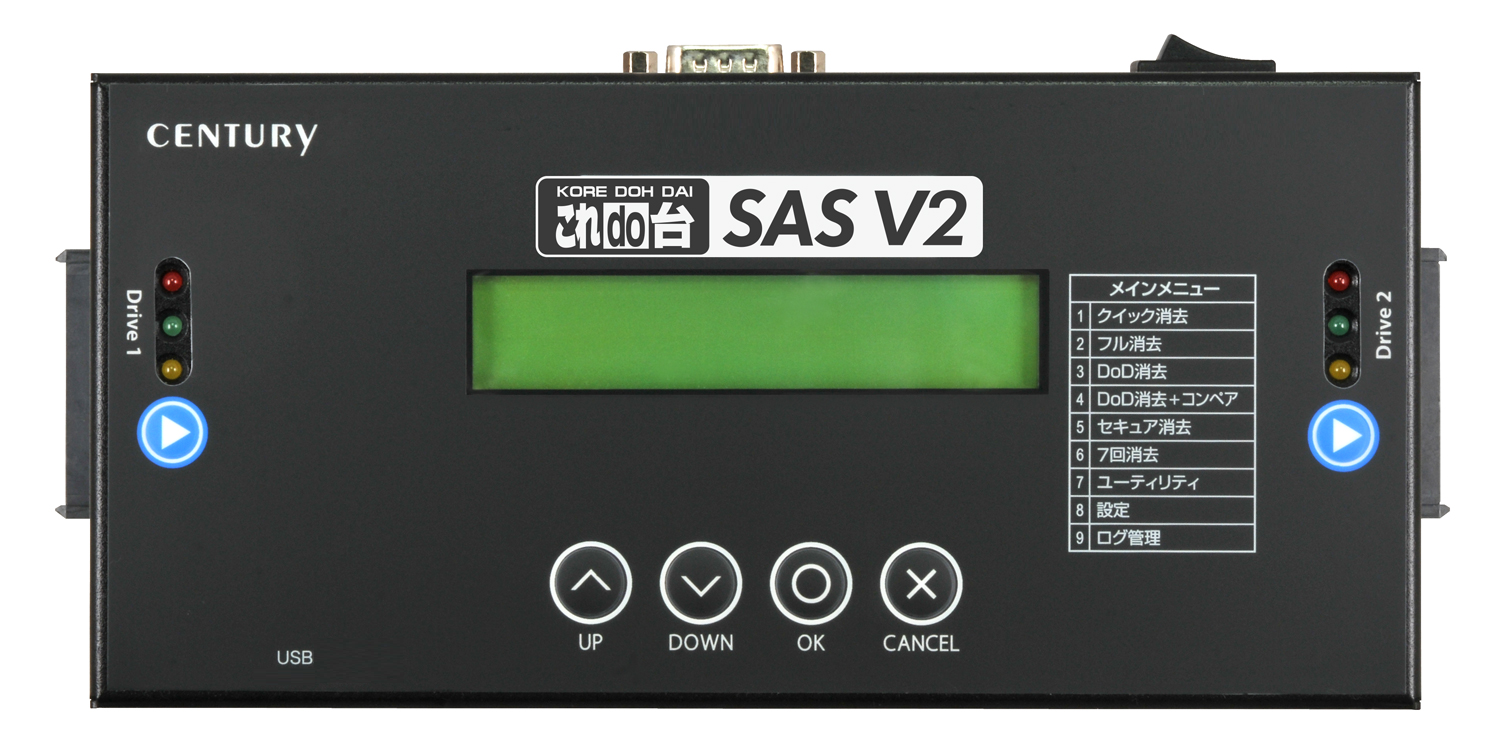

Device equipped with SAS HDD/SSD cloning/copying function

Data copy and erase machine compatible with SAS HDD/SSD and SATA HDD/SSD.

Erase up to two HDDs/SSDs simultaneously.

• Compatible with both 2.5-inch and 3.5-inch HDDs/SSDs.
• Enables high-speed erasure with a maximum transfer speed of 500MB/second (theoretical value).
• *Erase speed varies significantly depending on the connected HDD/SSD.

It features an asynchronous erasure function that allows you to swap out HDDs/SSDs as the erasure process is complete and then perform a fresh erasure.

Since each drive can be erased independently, once the erasure on one HDD/SSD is complete, you can connect a new HDD/SSD and start erasing even if the other drive is still being erased.

Equipped with 6 different erasure algorithms, allowing you to select the erasure method according to your needs.

▶ Quick Erase

This process writes zeros to the first sector of the disk. The process completes very quickly.

▶ Full deletion

Write zeros to all sectors of the disk.

▶ Secure erasure

The data will be erased using the drive’s erase secure function.

▶ DoD removal

The hexadecimal values 00 (first time) and FF (second time) are written to all sectors, and then a random number is overwritten on the third time.

▶ DoD Erase and Compare

Write 0x00, 0xFF, and a random number to all sectors, and then perform a compare test.

▶ Delete 7 times

The HDD will be erased seven times. Because this involves a total of seven accesses, the erasure process will take a very long time to complete.

Copying data from SAS HDD/SSD and SATA HDD/SSD.

Copying between different types of drives, such as SAS to SATA and SATA to SAS, is also possible.
*Copying is not possible if the sector sizes (512e, 4Kn, etc.) differ between the source and destination drives.

This is the standard HDD/SSD copy function included in the Koredo-dai series.

3 types of copy modes

▶ System and File Copy

This process copies only the system data and files from the HDD. Because it copies only the data being used and not the free space, the copy time is minimized.

▶ Partition copy

Only the allocated space will be copied, including all free space.

▶ Complete HDD/SSD copy

This will copy the entire contents of your HDD. It can copy regardless of the operating system or format.

Copy assistance function

▶Error skip function

If there are sector errors on the disk, you can skip the error locations and force the copy to continue.
*Please note that if you skip errors during the copy process, the copied HDD/SSD may not function correctly.

▶Compare function

This function compares the contents of the source disk and the destination disk to determine if they are identical.

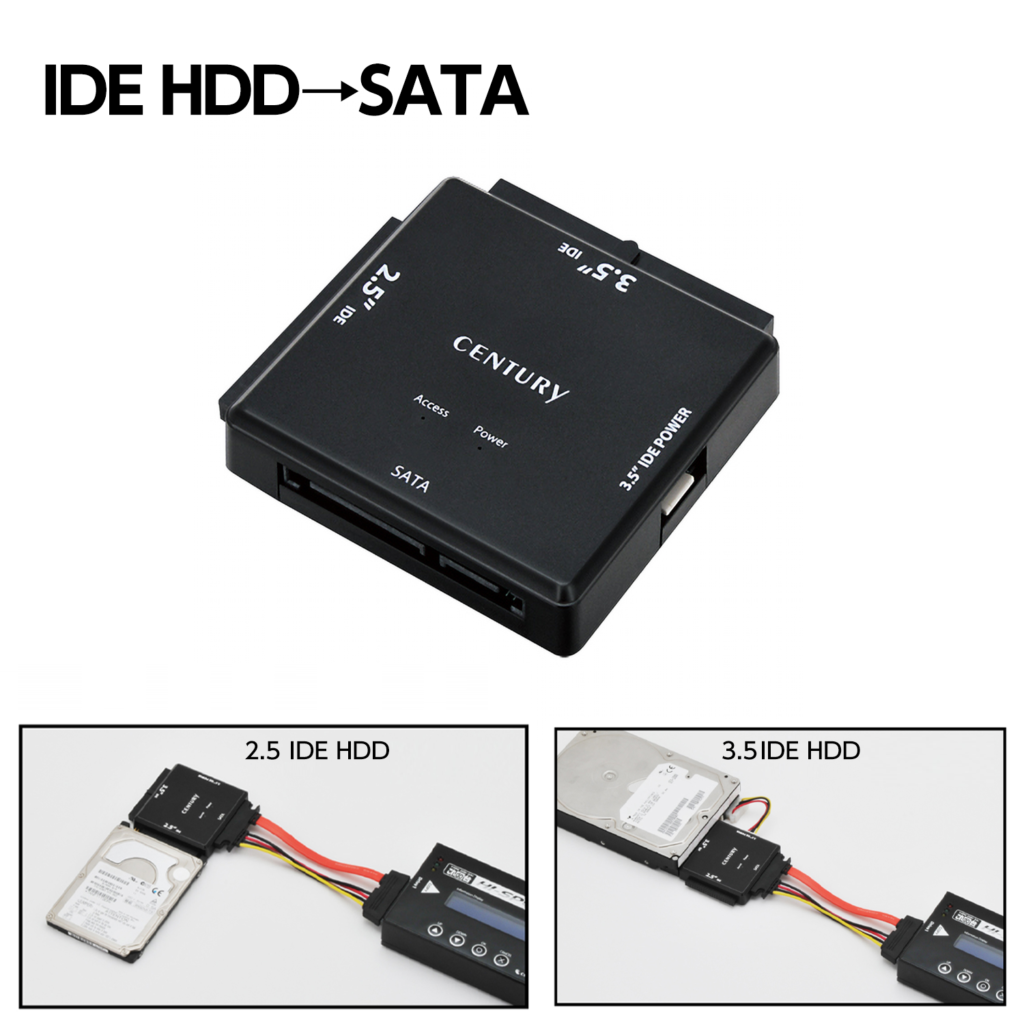

IDE HDDs can also be connected using the included dedicated adapter (IDE to SATA conversion adapter).

Equipped with a work log output function.

• The deletion log can be written as text data to a USB memory stick.
• The output log can be viewed on a PC or other device.
• The USB memory stick is not included.
•

Log Samples (Opens PDF file)　 ▶Sample 1 　 ▶Sample 2

Additionally, by connecting a separately sold erase log output printer, it is possible to print work logs.

Click here for details on the erase log output printer.

Main Features

Data Erase
Number of simultaneous erases	2 units
Erase speed	Up to 500MB/second Erase speed varies significantly depending on the HDD/SSD used.
The Erase Method	Quick Erase , Single Erase , Triple Erase (DoD method) , Triple Erase + Compare , Seven-Time Erase , Secure Erase
Data Copy
Copy speed	Up to 500MB/second * Copy speed varies significantly depending on the HDD/SSD used.
How to copy	• Whole HDD copy • System & Files copy • All Partition copy
Supported File Systems	and FAT16/32 and NTFS and EXT 2/3/4 ・HFS/HFS+
Compatible partition tables	MBR and GPT Supported file systems and partition tables are the formats used when using System and File copy and All Partition. 　For Whole HDD copy, a complete copy is possible sector by sector, regardless of the file system or partition table.
Log output
The Log Output Method	– Log output to USB memory (erase and copy logs) Printing via printer (only at the end of erasure) *Printer sold separately. See Bottom of page for details.
Number of logs saved	30,000 items
Compatible USB devices	USB flash drive formatted with FAT16/32 and conforming to USB 1.1/2.0 standards. This product does not have a function to format USB devices. 　Please format it to FAT16/32 separately using a PC or other device.

Please note that the color of the actual product may differ from what you see on your monitor.

Product Specifications

“Erase Log Output Printer” (sold separately)

By connecting the separately sold “Erase Log Printer,” you can print the model number, capacity, erasure method, and start/end times of the erased HDD upon completion of the erasure process.
*There is no printer output upon completion of the HDD copy process.

Product Specifications
Product name	Eraser log output printer
Model number	Printer for KD25/35 V2
JAN Code	454903 2020540
The Warranty Period	1 year
The Printing Method	Thermal transfer method
The interface	The Printer Port
Compatible roll paper	Thermal roll paper up to 58mm wide and 50mm in diameter
Dimensions (approx.)	Width 92 x Depth 92 x Height 111 mm
Weight (approx.)	250g (excluding accessories and roll paper)
Temperature/humidity	Operating conditions: Temperature 5-45°C, humidity 20-80%*1 ■Storage conditions: Temperature 0-55°C, humidity 10-90%*2 *1. No condensation. *2. Store roll paper in a cool, dark place.
Product content	The Dedicated Printer Unit • Y-cable for power • Printer connection cable • Dedicated roll paper ×2 The instruction manual is not included. Please refer to the erase log output printer manual (PDF) for usage instructions .

Product Specifications

Product name		This is do-dai SAS V2
Model number		KD25/35SASV2
JAN code		4549032020519
Warranty period		1 year
Body color		black
Interface	PC connection side	■SATA 3.0~1.0 (6G~1.5Gbps) ■SAS 2.1/2.0/ 1.0
	Log output side	USB Type-A port
	Printer connection side	Dedicated serial port
LCD display		20 characters x 2 rows, with backlight.
Dimensions (approx.)		195mm (width) x 93mm (depth) x 37mm (height) (excluding protrusions)
Weight (approx.)		730g (excluding accessories)
Temperature/humidity		Temperature 5-35°C, humidity 20-80% (non-condensing, within the operating range of the connected PC).
AC adapter		DC 12V 7A

*This product does not contain PCBs (polychlorinated biphenyls).
