Biometric ID Terminal V11 Handheld for Pogo PIN supported Extensible Biometric Handheld Terminal

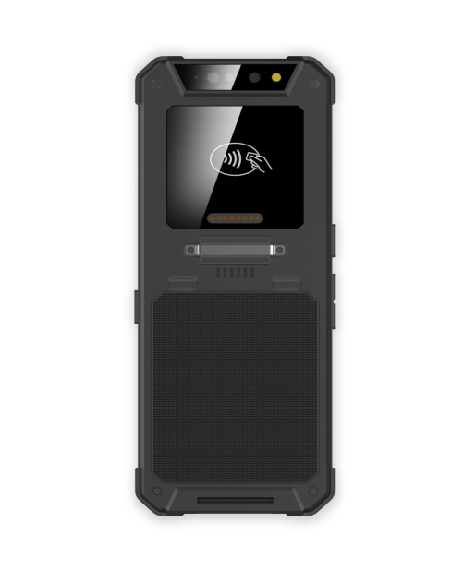

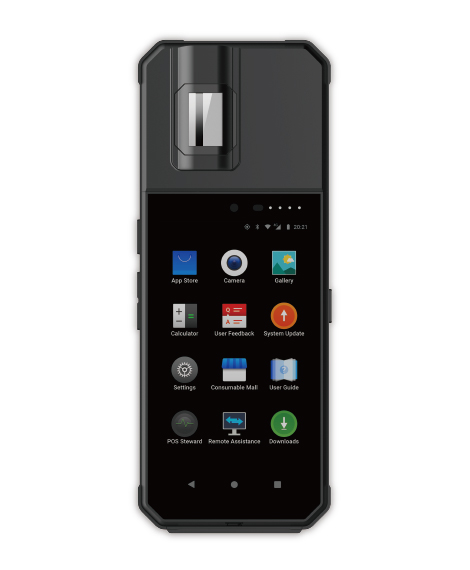

Biometric ID Terminal V11 Handheld Biometric ID Terminal – Model: V11

Biometric ID Terminal V11 Handheld is a powerful Android biometric terminal designed for secure identity verification, fingerprint authentication, NFC card reading, QR code scanning, smart card access, and mobile workforce management. This handheld biometric device supports Aadhaar authentication, eKYC verification, access control, attendance management, law enforcement, banking KYC, telecom SIM verification, logistics tracking, warehouse operations, and government digital identity projects.

Specification

Biometric ID Terminal V11 Handheld – Device Parameter

Operating System	Android 12 (GMS Available)
Processor	Quad-Core ARM Cortex A53
Internal Memory	RAM 3GB + ROM 32GB
Display	LCM 5 inch, 1280×720, IPS, Multi-Touch Panel
Camera	Rear Camera 8MP Autofocus with Flash, optional 13MP Front Camera 5MP
Barcode	For both barcode and QR code
Expansion Card	Support up to 128GB Micro SD Card
Battery	5,000mAh by default (up to 7500mAh) Support PD Charging Certification: 38.3 report, CB, CE, FCC
Dimension	180X80X60mm (L×W×H)
Host Interface	USB Type-C
Physical Buttons	Power Button, Function, Volume Up & Down Buttons
UHF Module	Optional
Pogo PIN	Support
Earphone	Type-C port convert to earphone
Speaker	Support
Material	Rugged and ABS+PC
Security Features
PSAM	1× (optional 2×)
Fingerprint Module	Morpho CBM-V3 (by default) Compatible with: Futronic FS81, SecuGen U10, Suprema Slim2S, Aratek A600-M
Wireless Communication
4G	FDD-LTE B1 B3 B7 B8 B28 TDD-LTE B38 B39 B40 B41B
3G	WCDMA HSPA UMTS 850 / 900 / 1700 / 1900 / 2100Mhz
2G	GSM / GPRS / EDGE
WLAN	802.11ac / a / b / g / n
Bluetooth	Bluetooth 4.2+
GNSS	GPS/AGPS, GLONASS, Beidou Internal Antenna
Credential Reading
NFC	Clock Frequency: 13.56Mhz Smart Card Interface Speed: 106~848kbps Protocol: ISO/IEC 14443 A/B ISO 15693, Mifare, Felica NFC SDK by Android System (optional)
Contact Card
Contact Card (ID-1)	Clock Frequency: 4M ~ 12M ISO 7816-3 ID-1 (Full-size), ISO / IEC7816, T=0 and T=1 Protocol, Class A, B, C cards Smart Card Interface Speed: 10753 ~ 625kbps (when supported by card)

Description

More Scalabilities, More Possibilities

More possibilities and functions are available with pogo PIN, such as Printer module, UHF module, etc.

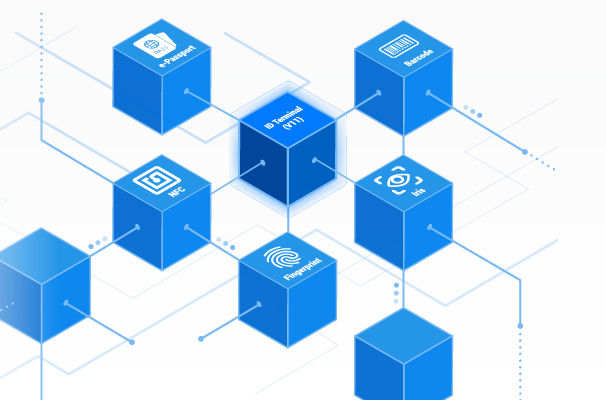

How to Use

Supporting fingerprint verification, NFC card reading, contact card reading, iris recognition, MRZ Passport reading, OCR, and barcode scanning

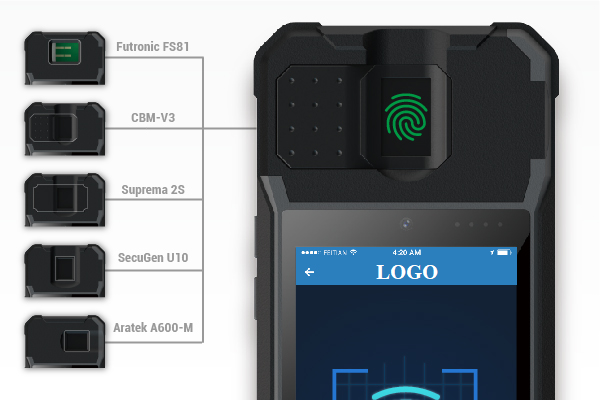

Strong Fingerprint Authentication

Live finger detection technology, high perform fingerprint sensor guarantees accurate and effective ID verification.

Multi-vendor fingerprint sensors are supported: Built-in FBI PIV & FBI Mobile ID FAP30 / FAP20 / FAP10 certified single flat finger scanner including:

1. IB LES Danno (TFT camera)
2. Suprema: BM-Slim2, BM-Slim2S, BM-Slim3S
3. Morpho CBM-E3
4. Futronic: FS81H, FS89H
5. Aratek: A600-M
6.SecuGen U10

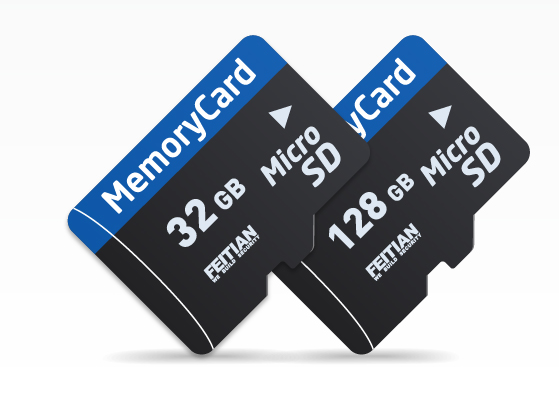

Large Memory

3GB RAM+32GB ROM, up to 128GB Micro SD card supported

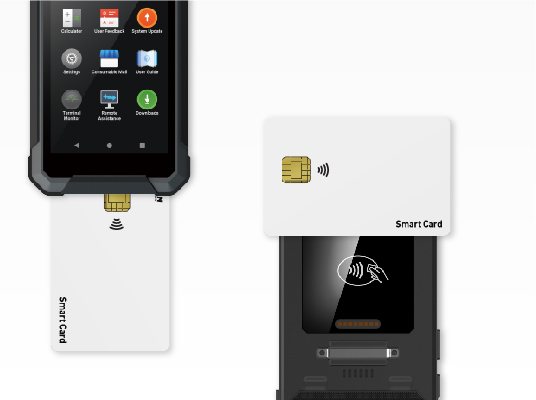

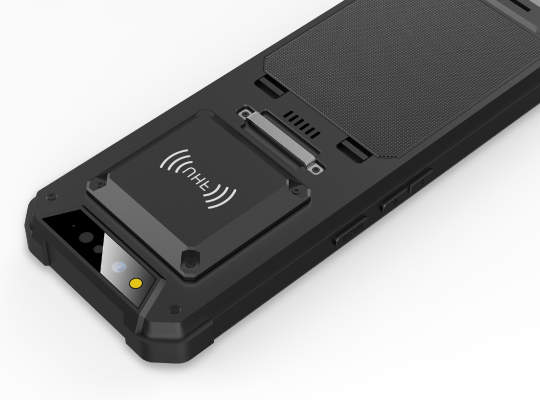

For Both Contact and Contactless Cards

Contact: Support ID-1 size smart card, such as: ID card, chip embedded NFC card.

Contactless (NFC): ISO/IEC 14443 A/B, ISO/IEC 7816, etc. support original Android NFC API.

Always Connected

4G/3G, Wi-Fi, Bluetooth and USB Type-C supported guarantee the device can be connected anywhere with smooth data transmission
