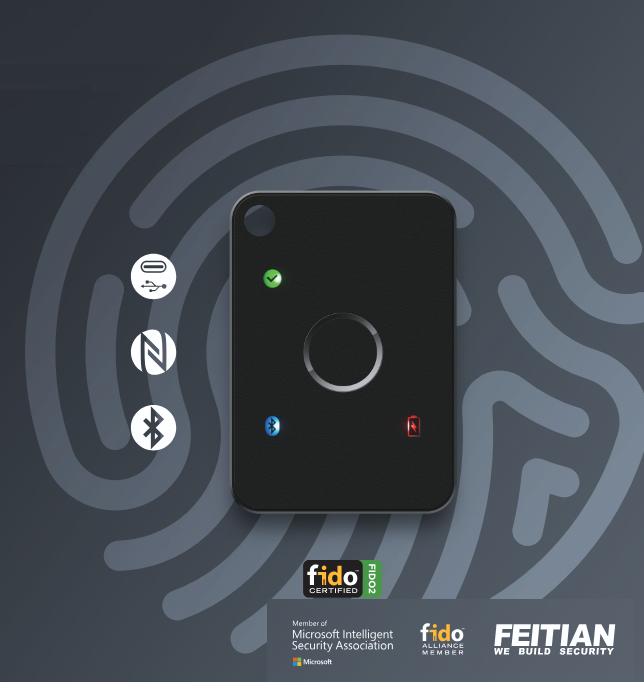

Feitian AllinPass K33 FIDO2

Feitian AllinPass K33 FIDO2

Feitian AllinPass K33 FIDO2 Security Key – Two Factor Authenticator – USB-C NFC and Bluetooth with FIDO2 + FIDO U2F -Biometric Fingerprinting- Help Prevent Account Takeovers with Multi-Factor Authentication

FEITIAN AllinPass K33 FIDO2 is a security key built on FIDO2.0 Specification which promoted by FIDO alliance to replace traditional password using biometric or add a second factor to reduce the complexity of traditional password scheme. The AllinPass K33 security key provides users with a strong, user-friendly, passwordless logon experience. The Bluetooth® Certified BLE module embedded in the AllinPass FIDO2 Security Key ensures seamless communication with most mainstream mobile devices and PCs. The NFC communication is fully compliant with the ISO 14443 standard and will work with all compliant smart card readers.

The Feitian AllinPass K33 FIDO2 is a FIDO2 certified authenticator which effectively protects users against phishing attacks, MITM attacks, and server credential breaches. The CC EAL 6+ Secure Element embedded in the AllinPass FIDO2 Security Key will also provide strong chip level protection and runs mature algorithms ensuring data security. FEITIAN AllinPass FIDO2 is recommend by Microsoft as the security key for windows hello. For now, we can support the Azure enterprise deployment to provide security and usability. Since FIDO2.0 is submitted to W3C for standardization, most platforms will support FIDO2.0 authentication.

The embedded high-performance FPC fingerprint sensor will ensure fluent user experience with low FRR and FAR. Once enrolled, fingerprint information will only be processed inside the key and protected by security chip embedded, which significantly reduces the risk of fingerprint leaking.

Core Features

• Driver free. Recognize as a HID device, no driver needed for Feitian AllinPass K33 FIDO2 to work for Windows Hello.
• Capacitive fingerprint sensor. Fingerprint protected by secure elements.
• Multiple interfaces are supported by AllinPass K33, including USB-A or USB-C (Required a BSU cable), NFC which is fully compliant with the ISO 14443 standard, and BLE that enables users to use it on a mobile application.

Warning:

For security concern, the key will be blocked if user fail to verify fingerprint 15 times (3 times per retry × 5 retry counts) in a row. User can only unlock via reset device (All stored data will be lost).

Product Specification

Specification	Details
Security Algorithms	ECDSA, SHA-256, AES Encryption, HMAC Authentication, ECDH Key Exchange
Interface Options	USB-A, USB-C (via USB Cable), NFC (Near Field Communication), Bluetooth Low Energy (BLE)
Communication Protocol	CTAPHID (Client to Authenticator Protocol over HID)
Working Voltage	5.0V DC
Working Current	Standby: 80mA
Power Consumption	Standby: 0.4W
Operating Temperature	-10°C to +45°C
Storage Temperature	-20°C to +70°C
LED Indicators	Green LED, Red LED, Blue LED Status Indicators
Housing Material	Durable PC + ABS Industrial-Grade Casing
Dimensions	57 × 40 × 6 mm
Authentication Technologies	FIDO2, U2F, Passwordless Authentication, Multi-Factor Authentication (MFA) Support
Connectivity Features	USB Security Key, NFC Security Token, BLE Authentication Device
Cybersecurity Applications	Secure Login, Identity Verification, Zero Trust Security, Enterprise Access Control
Compatibility	Windows, macOS, Linux, Android, iOS, Cloud Applications and Enterprise Platforms
Use Cases	Passwordless Login, Two-Factor Authentication (2FA), Multi-Factor Authentication (MFA), Secure Remote Access, Government & Enterprise Security

Other Specifications

Specification	Details
Standard	FIDO2
Certification	FIDO2® L1 Certified
Embedded Security Algorithm	ECDSA, SHA256, AES, HMAC, ECDH
Size	57 × 40 × 6 mm
Data Storage Life	> 10 years
Working Voltage	5V DC
Rating Current	80mA
Power	0.4W
Interface Type	USB-C Female (add-on USB-C to USB-C cable), NFC, BLE
Battery	Rechargeable
Working Temperature	-10°C ~ 45°C
Storage Temperature	-20°C ~ 70°C
LED Indicator	Green, Blue and Red
Button	Physical
Fingerprint Sensor	FPC Fingerprint Sensor
Casing Material	PC, ABS

Biometric Fingerprint Module

Specification	Details
Image Pixel	160 × 180 pixel
DPI	508 DPI
Sensor Service Life	More than 200k times
Storage	50 fingerprints
Autonomic Learning	Yes
False Accept Rate	< 0.001%
False Reject Rate	< 1%
Recognition Time	< 0.6s (for 120 Finger Points)
Acquisition Time	< 180 ms

Mobile compliance

Feitian AllinPass K33 FIDO2 Authentication into mobile devices can be done through the NFC and BLE communication interfaces on the FEITIAN AllinPass K33 FIDO2. FEITIAN will provide an SDK for clients looking to integrate FIDO authentication into their mobile applications.

Security

The Feitian AllinPass K33 FIDO2 is a FIDO2 certified authenticator which effectively protects users against phishing attacks, MITM attacks, and server credential breaches. The CC EAL 6+ Secure Element embedded in the AllinPass FIDO2 Security Key will also provide strong chip level protection and runs mature algorithms ensuring data security

Buy Feitian AllinPass K33 FIDO2

Buy Feitian AllinPass K33 FIDO2 authenticator is fully compliant with the FIDO2 protocol and has been FIDO2 certified. Working with the W3C WebAuthN protocol, the security key provides users with a strong, user-friendly, paswordless logon experience. The Bluetooth® Certified BLE module embedded in the AllinPass FIDO2 Security Key ensures seamless communication with most mainstream mobile devices and PCs. The NFC communication is fully compliant with the ISO 14443 standard and will work with all compliant smart card readers.

Where to purchase Feitian AllinPass K33 FIDO2? Contact Sales

Advanced FIDO2 Security Key with USB-A, USB-C, NFC and BLE connectivity. Supports ECDSA, SHA-256, AES, HMAC and ECDH encryption for passwordless authentication, MFA, 2FA, enterprise cybersecurity and secure identity access management. Suitable for India and global deployments.
