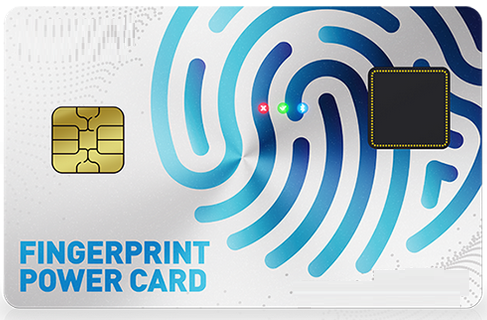

BioCard Biometric Card (FIDO2 & U2F + NFC)
Buy BioCard Biometric Fingerprint Card Support FIDO2 & U2F applet No battery inside
Secure BioCard Passwordless Authentication | Biometric Fingerprint Verification/Access Control/Secure payment card, and identification
The BioCard Biometric Fingerprint Card is an advanced fingerprint-enabled smart card designed for passwordless authentication, secure identity verification, and strong two-factor authentication (2FA). Built with FIDO2 & U2F applet support, NFC, and on-card biometric matching, Bio-Card ensures that fingerprint data never leaves the card, delivering the highest level of privacy and security.
Ideal for banking, enterprise access control, government ID programs, immigration systems, Aadhaar-based authentication environments, and biometric verification workflows, This Bio Card represents the next generation of biometric smart cards.
Features:
– Fingerprint verification, no PIN needed by biometric fingerprint smart card
– Fingerprint information match-on-card, user’s biometric data will never leave the card
– Fingerprint enrollment could be done all by end users. zero-modification for banks and merchants
– Fingerprint data stored inside MCU
– Fingerprint storage & matching is conducted inside MCU
– Dual-interface ID1 card
– Support FIDO2 & U2F applet
– No battery inside
Note:The product image is for reference only! The actual card printing design may be different to this. It depends on the stock state. Thanks for understanding.
Specification
| Product name | F1000_B |
| Chip Certification | CC EAL6+, EMVCo |
| Physical Storage | |
| NVM Type | Flash(SOLID FLASH) |
| Code Area | FLASH |
| User NVM Size | 92.6K |
| User RAM size | 4.78K |
| Algorithm | |
| RSA 2048 | Yes |
| AES | Yes |
| SHA-1 | Yes |
| SHA-256 | Yes |
| SHA-384 | Yes |
| SHA-512 | Yes |
| MD5 | No |
| 3DES (ECB, CBC) | Yes |
| HMAC | No |
| ECC(FP_192) | Yes |
| ECC(FP_224) | No |
| ECC(FP_256) | Yes |
| ECC(FP_384) | Yes |
| ECC(FP_521) | No |
| ECC(F2M) | No |
| KOREAN SEED | No |
| Standard Compliance | |
| Java Card™ 2.2.2 | Yes |
| Java Card™ 3.0.4 | Yes |
| Java Card™ 3.0.5 | No |
| GlobalPlatform 2.3.1 | Yes |
| Communication Protocol | |
| ISO7816 T=0 | Yes |
| ISO7816 T=1 | Yes |
| ISO14443 T=CL Type A | Yes |
| ISO14443 T=CL Type B | Yes |
| SWP | No |
| Mifare | Yes |
| JCRE Features | |
| APDU Buffer Size | 261 bytes |
| Transaction Size | 384 bytes |
| Extended APDU | Yes |
| RMI | No |
| Logical Channels | 4 |
| Garbage Collector | Yes |
| Applet Deletion | Yes |
| Sensor Features | |
| Fingerprint Type | IDX_3200 |
| Communication Interface for Enroll | Bluetooth |
| Communication Interface for Match | Bluetooth / CL |
| Number of Fingerprint Enroll | 8 |
| Maximum number of Stored Fingerprints | 8 |
| FRR | 3 / 100 |
| FAR | 1 / 10000 |
| Battery | |
| Battery | No |
Other Features
- Fingerprint verification – no PIN required
- Match-on-Card biometric authentication
- Biometric data stored securely inside MCU
- Support for FIDO2 & U2F applets
- Dual-interface ID-1 card (Contact + NFC)
- 13.56 MHz MiFare / DESFire compatibility
- Multiple fingerprint enrollment methods
- End-user fingerprint enrollment
- No backend or system modification required
- Optional PIV-only configuration
- Optional payment chip
- Custom card artwork & branding support
Why BioCard is a True Biometric Card
Unlike traditional biometric card readers or external fingerprint scanners, Card performs fingerprint capture, storage, and matching directly on the card.
How Fingerprint Biometrics Work on Bio-Card
- User places finger on the card sensor
- Fingerprint template is matched inside the card MCU
- Authentication result is released securely
- Biometric data never exits the card
This architecture answers key global privacy questions such as:
- Are fingerprints biometric data? → Yes, keeps them private
- What is fingerprint biometrics? → Unique physiological identification
- Difference between biometric and fingerprint? → Fingerprint is a biometric modality
Use Cases
- Biometric Access Control Systems
- FIDO2 Passwordless Login
- Enterprise Identity & Access Management
- Biometric Verification Cards
- Government & Immigration Biometric Programs
- Financial Services & Banking
- Healthcare Identity Security
- Aadhaar-based biometric authentication environments
- Secure Logical & Physical Access
BioCard vs Traditional Biometric Fingerprint Readers
| Feature | Bio-Card | External Fingerprint Scanner |
|---|---|---|
| Match-on-Card | ✅ Yes | ❌ No |
| Fingerprint Data Leaves Device | ❌ Never | ✅ Yes |
| FIDO2 / U2F Support | ✅ Native | ❌ No |
| NFC Enabled | ✅ Yes | ❌ No |
| Privacy-First Architecture | ✅ High | ⚠ Medium |
Technical Specifications
- Product Name: BioCard
- Model Number: Biometric Card
- Casing Model: Card
- Interface: Dual Interface (Contact + NFC)
- Frequency: 13.56 MHz
- Authentication: Fingerprint Match-on-Card
- Standards: FIDO2, U2F
- Options: PIV-Only
- Battery: No internal battery
- Fingerprint Capacity: Multiple enrollments
- Durability: ~25,000 fingerprint reads (~3 years)
- Security Chip: Optional payment chip
Compliance & Security Alignment
- FIDO2 / U2F Authentication Standards
- Privacy-by-Design Architecture
- Suitable for PCI, enterprise IAM & government ID projects
- Ideal for biometric identity cards & smart cards
Ordering Information
- Unit Price: ₹8,800
- MOQ: 5 Units
- Shipping: Included
- Warranty: 1 Year
- Customization: Available for bulk orders
📩 Bulk Orders & Customization:
Contact contact@aftindia.in for enterprise pricing and large-scale deployments.
Important Note
Product images are for reference only. Final card printing and appearance may vary depending on stock and customization requirements.
