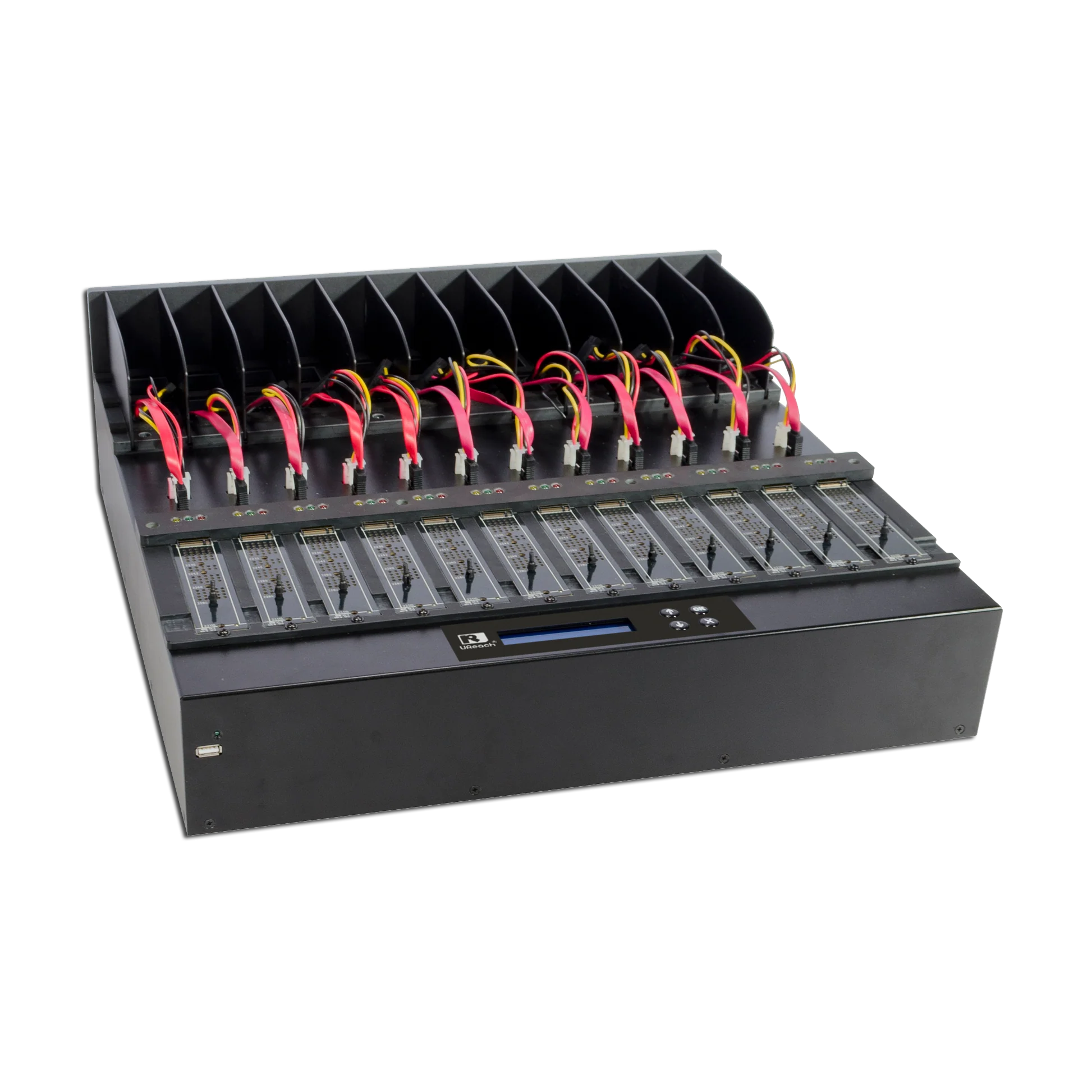

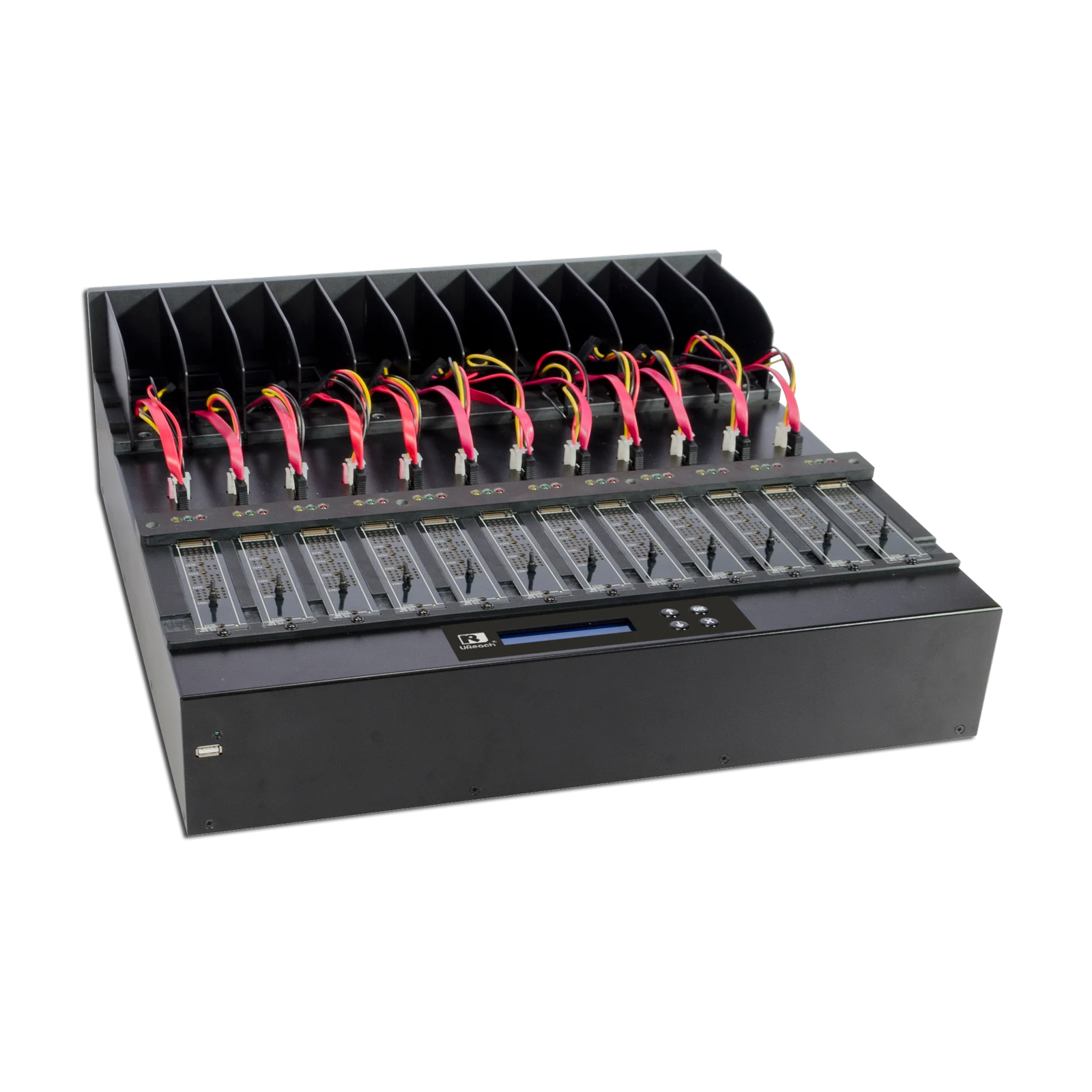

PW-H Series for PW400H-PW800H-PW1200H-Auto-detect Dual-Interfaces M.2 SATA NVME SSD Cloner Duplicator – 18GB/min Copy Speed nvme replicator
PW-H Series
- PW400H – High-speed 18GB/min Copy Speed
- PW800H – High-speed 18GB/min Copy Speed
- PW1200H – High-speed 18GB/min Copy Speed
⚡ U-Reach PW-H Series NVMe & SATA SSD Cloner
High-Speed Standalone Duplicator for M.2 & SATA Drives
🚀 Clone NVMe & SATA Drives with Maximum Speed & Simplicity
The U-Reach PW-H Series is a powerful, professional-grade SSD and HDD cloner that supports both NVMe M.2 and SATA interfaces. Designed for high-speed duplication without requiring a PC or external software, this device is ideal for IT professionals, production lines, recycling firms, and enterprise-level data deployment.
With models capable of up to 18GB per minute per port, and intelligent cross-interface copy support, the PW Series is the perfect tool for copying, wiping, and managing large-scale storage devices. Just plug it in, insert your drives, and press “Start”—it’s that simple.
✅ Key Features of the U-Reach PW-H Series Cloner
🧠 Standalone Operation – No PC Needed
The PW Series duplicator is a completely independent system. It operates without a PC, software, or drivers. Simply power it up, insert your M.2 NVMe, U.2, or SATA drives, and let it copy or erase with a single push.
🔄 Cross-Signal & Cross-Interface Duplication
Thanks to its auto-detect NVMe and SATA signal design, the PW Series can copy across different formats:
- M.2 to M.2 (NVMe/NVMe or SATA/SATA)
- M.2 to SATA
- SATA to M.2
- SATA to SATA
This cross-interface support makes it incredibly versatile for any IT environment where mixed storage formats are common.
⚡ Up to 18GB/min Copy Speed per Port
U-Reach PW Series models offer two performance levels:
- Standard: 9GB/min
- High-Speed: Up to 18GB/min per port
Whether duplicating 1, 7, or 11 drives simultaneously, the system maintains a consistent speed with zero performance drop.
📋 Intelligent Copy & Erase Modes
🛠️ Multiple Copy Modes for Any Use Case
Choose the right mode based on your device size, format, and content:
- Quick Copy (Systems & Files only)
- All Partitions Copy
- Whole Drive Copy
- Percentage Copy
These flexible options are ideal for both full drive imaging and selective cloning tasks.
🧹 Enterprise-Grade Erase Functions
Safely sanitize drives with industry-standard erase protocols:
- Quick Erase
- Full Erase (NIST 800-88 Compliant)
- Secure Erase (DoD standards)
The PW Series is widely used in recycling and data destruction operations due to its reliable wipe functions.
✅ Bit-by-Bit Accuracy with CRC Check
Every copy is verified with bit-by-bit comparison and CRC checksum to ensure flawless data transfer and long-term reliability.
📦 Available Models
| Model | Copy Targets | Dimensions (cm) | Weight | Speed |
|---|---|---|---|---|
| PW400 H | 1:3 | 48 × 9 × 18 | 5.2 kg | 9–18GB/min |
| PW800 H | 1:7 | 48 × 34 × 18 | 8.4 kg | 9–18GB/min |
| PW1200 H | 1:11 | 48 × 51 × 18 | 11.5 kg | 9–18GB/min |
🔌 Compatibility & Expandability
- Supports M.2 (NGFF) NVMe and SATA drives – M key & B+M key
- Compatible with mSATA, CFast, and 2.5”/3.5” HDDs via optional adapters
- Works with Windows, Mac, Linux, and stand-alone OS
- Supports MBR & GPT partition tables
- Tested with drives over 18TB
🧩 Optional Accessories
Expand functionality with these U-Reach certified adapters:
- M.2 Socket (PE5334A)
- mSATA to SATA Adapter (P1041)
- M.2 to SATA Adapter (P1051)
- CFast to SATA Adapter (P1053)
🖥️ LCD & Controls
- 3 LED indicators per port (Power, Pass, Fail)
- 4-button control panel: ▲ ▼ OK ESC
- Backlit monochrome LCD display for easy navigation and real-time status monitoring
🌍 Use Cases
The U-Reach PW Series is designed for:
- Data centers & server maintenance
- Government & defense operations
- System integrators & cloning farms
- IT service providers
- Recyclers and data destruction firms
🔒 Why Choose U-Reach?
- 🔧 FPGA-based architecture: Ultra-stable operation with no OS crashes
- 🚀 Next-round ready: No reboot or power-off required between duplication rounds
- 💼 Commercial-grade build: Rugged metal casing and modular design
- 🛡️ Trusted worldwide: Used in 50+ countries for secure drive duplication
🌐 Buy the U-Reach PW-H Series Today
Looking for a professional-grade SSD/HDD duplicator that delivers speed, reliability, and versatility? The U-Reach PW-H Series offers everything you need to handle NVMe and SATA duplication at scale.
📞 Contact us now for a quote or free demo!
📧 Email: [contact@aftindia.in]
📍 Shipping worldwide from [factory warehouse]
PW-H Series – PW400-H, PW800-H, PW1200-H – Highspeed Models Available
Auto-detect Dual-Interfaces M.2/Sata SSD Duplicator – 18GB/min Copy Speed – SATA NVME SSD Cloner PW-H Series.
