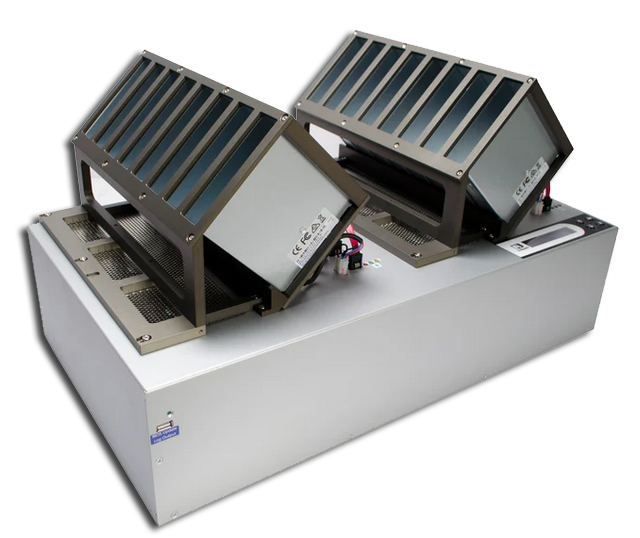

MT-CRU Duplicator for CRU HDD Copy and Erase

CRU Duplicator MT-CRU Series

MT-CRU Duplicator Series

  • MT800H-CRU: 18.0GB/min (300MB/sec)
  • MTC1600H-CRU: 15.0GB/min (250B/sec)
Learn More
CRU HDD Duplicator Comparison Chart
Features & Specification
Buy

🚀 CRU Duplicator MT-CRU Duplicator Series

Maximize High-Volume Duplication Efficiency with U-Reach MT-CRU Series

The MT-CRU Duplicator is a professional, standalone CRU hard disk duplicator and eraser system designed for high-volume data duplication. Equipped with U-Reach’s proprietary FPGA-based multitasking architecture, this system delivers blazing-fast transfer speeds of up to 18GB/min (300MB/sec) without performance loss, even when duplicating to 15 drives simultaneously. Ideal for enterprise, government, and cinema industries, it ensures data accuracy, operational efficiency, and secure sanitization in every task.

💡 MT-CRU Duplicator offers 18GB/min high-speed duplication and secure erase for CRU HDDs. 7 or 15 target models. Standalone, NIST/DoD compliant, FPGA-powered.

✅ Key Features at a Glance

  • ⚡ High-Speed Duplication:
    • 18.0 GB/min (300MB/sec)
    • 15.0 GB/min (250MB/sec)
  • 🔌 Standalone FPGA Operation – No PC required.
  • 🔒 Read-Only Source Port – Protects source drive integrity.
  • 🔁 Real-Time PC Monitoring – Detailed logs, speeds, and progress reports.
  • 🔧 Modular Cabling Design – Reduces downtime, ideal for long-term use.
  • 🧰 Event Log Management – Exportable logs via Port #1 or software.
  • 🌐 Wide Format Compatibility: FAT, NTFS, EXT, HFS, GPT, MBR, and more.
  • 🧹 Certified Erasure Modes: NIST 800-88, DoD 5220.22-M, Secure Erase.
  • 🔄 Daisy-Chain Scalability (MTC1600H-CRU only)

🔷 Copy & Erase Modes

Copy Modes

  • Quick Copy (System & Files) – Supports NTFS, FAT16/32/64, EXT2/3/4, HFS/HFS+/HFSX
  • Whole Device Copy – Compatible with all file systems including proprietary formats
  • All Partitions Copy
  • Percentage Copy

Erase Modes

  • Secure Erase / Enhanced Secure Erase (NIST 800-88)
  • Quick Erase
  • Full Erase (NIST 800-88)
  • DoD 5220.22-M Standard / 7-Pass

🔷 Intelligent Features

  • 🚫 Read-Only Source Port to prevent contamination
  • 📉 Bad Sector Skip and Minimum Speed Threshold
  • 🔁 HPA Copy & Clear Settings
  • 🧪 Bit-by-Bit Comparison + CRC Verification
  • 📁 Detailed Log Manager with serial number, speed, port info

📦 Available Models & Technical Specifications

ModelTarget PortsMax SpeedDimensions (cm)Weight (Kg)
MT800H-CRU1:718.0 GB/min36 x 29 x 289.0
MTC1600H-CRU1:1515.0 GB/min60 x 38 x 3411.4

Package Includes: Duplicator, Power Cord, Grounding Cable, USB PC Link Cable, User Manual, PC Link Software.

Power & Environmental

  • Humidity: 20–80% operating, 5–95% storage
  • Input: 115V/230V AC, 50/60Hz
  • Operating Temp: 0°C ~ 60°C
  • Storage Temp: -20°C ~ 85°C

*CRU Frame shipped separately and must be installed by the user.

🔷 What’s in the Box?

  • ✅ User Manual
  • ✅ MT-CRU Duplicator Unit
  • ✅ CRU Frame (shipped separately)
  • ✅ Power Cord & Grounding Cable
  • ✅ USB Cable for PC Link
  • ✅ PC Link Software Disc

🔷 Use Cases

  • 🔄 Refurbishers & Data Centers: Drive reuse & lifecycle management
  • 🎞️ Cinema & Post-Production: Distribute movie content via CRU DX115
  • 🛡️ Military & Government: NIST/DoD-compliant drive erasure
  • 🏢 IT & Enterprise: Batch copy secure operating systems & software

🔷 Optional Accessories

  • PC Link software for real-time control and reporting
  • CRU MoveDock 3S Carrier
  • Rack-mount kits for 19″ servers

Supported Drives

  • Formats: FAT, NTFS, EXT, HFS, GPT, MBR, Advanced formats
  • CRU DX115 HDDs
  • Capacity: Over 18TB+
  • OS Support: Windows, Linux, macOS, proprietary systems

🔒 Built-in Copy & Erasure Modes

  • Copy Options: Quick Copy, Whole Drive, Partition Copy, Percentage Copy
  • Verification: Bit-by-bit data comparison from source to target
  • Erase Modes:
    • Quick Erase
    • Full Erase (NIST 800-88)
    • DoD 5220.22-M / ECE
    • 7-Pass Erase
    • Secure & Enhanced Secure Erase

🌍 Compatibility

  • Supported Devices: CRU HDD & SSD
  • Max Capacity: 18TB+
  • Operating Systems: Windows, Linux, macOS, and proprietary systems
  • Certifications: FCC, CE, RoHS, REACH

🎯 Why Choose the MT-CRU Series?

Built for continuous operation, compliance, and performance, the MT-CRU Duplicator Series offers scalable, secure, and extremely fast duplication for any professional data handling environment. Upgrade your data duplication infrastructure today.

📞 Get Expert Assistance

CRU HDD Duplicator Comparison Chart

🔷 Internal Linking Suggestions

MT-CRU Duplicator – CRU Hard Disk Duplicator and Eraser Series

High-speed MT-CRU Duplicator for CRU DX115 carriers. Copy or erase 7–15 drives at up to 18 GB/min with CRC, log reporting & auto‑reject. Effortlessly duplicate or erase CRU DX115 drives with the MT-CRU Duplicator. 7 or 15 targets, blazing speeds, error handling & detailed log reports.

Questions? Contact Sales

The MT-CRU Duplicator by U‑Reach is a dual-purpose standalone system for copying CRU DX115 cinema hard drives and securely erasing them. Available in 7‑target (MT800H) and 15‑target (MTC1600H) configurations, it delivers consistent 18 GB/min transfer per drive using FPGA technology, ideal for high-volume cinema distribution or IT deployment.
