NVMe CyCLONE Pro 600 Duplicator (36GB/min), (18GB/min)
NVMe CyCLONE Pro: 2 Powerful NVMe CyCLONE Pro 600 Duplicator (36GB/min), (18GB/min) to Fast and Efficient M.2 NVMe PCIe SATA SSD cloning, data transfer, high-speed storage duplication technology, M.2 Cross-Interface Duplication – One NVMe SSD Cloner Solution for All, hardware solutions, external duplicators.
NVMe CyCLONE Pro – PRO series
NVMe CyCLONE Pro 600 Duplicator (36GB/min) (Blue LCM)

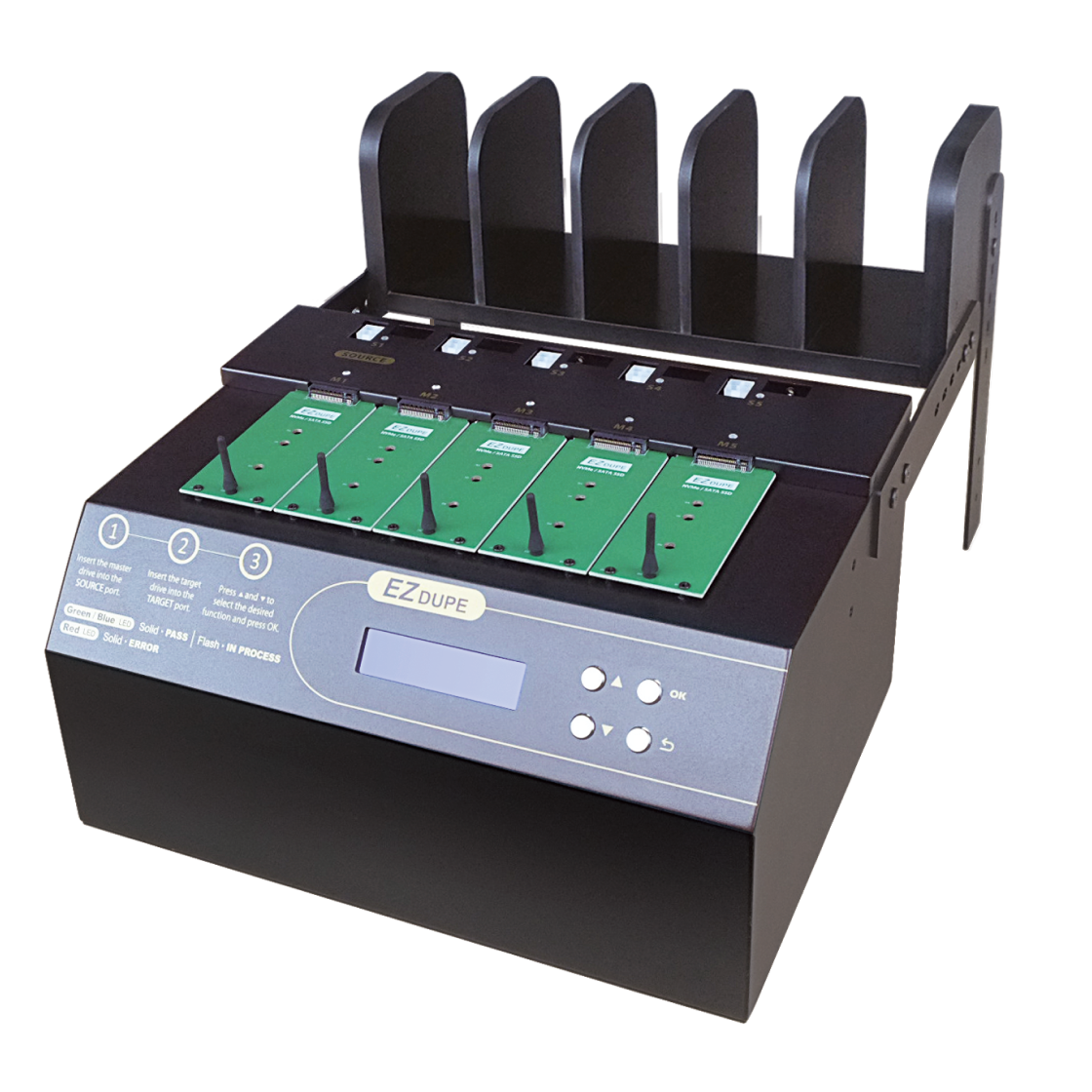

1-4 NVMe CyCLONE Pro 600 Duplicator (600MB/s)

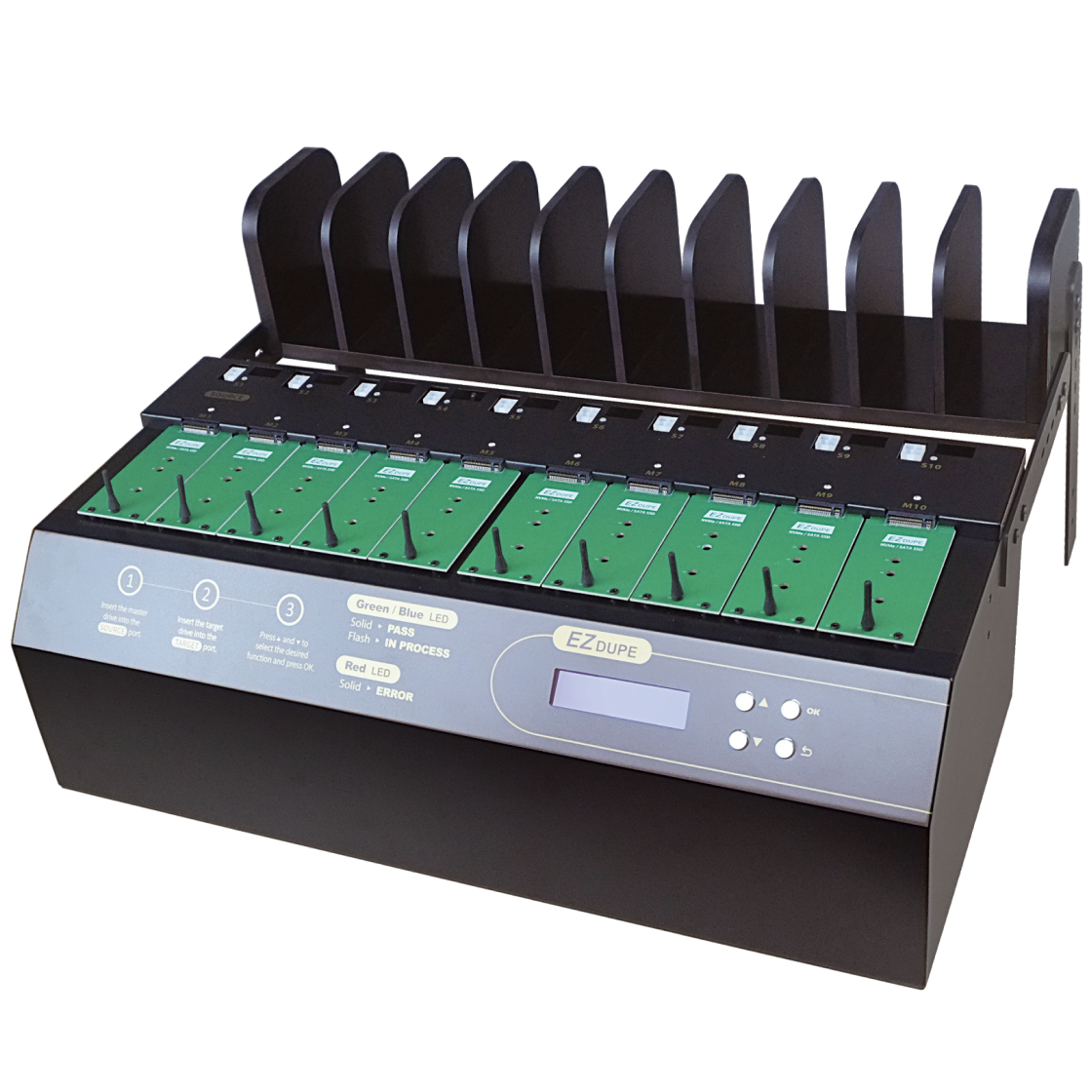

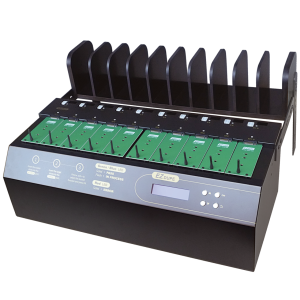

1-9 NVMe CyCLONE Pro 600 Duplicator (600MB/s)
NVMe CyCLONE Pro 300 Duplicator (18GB/min) (Blue LCM)
1-4 NVMe CyCLONE Pro 300 Duplicator (300MB/s)
1-9 NVMe CyCLONE Pro 300 Duplicator (300MB/s)
FEATURES

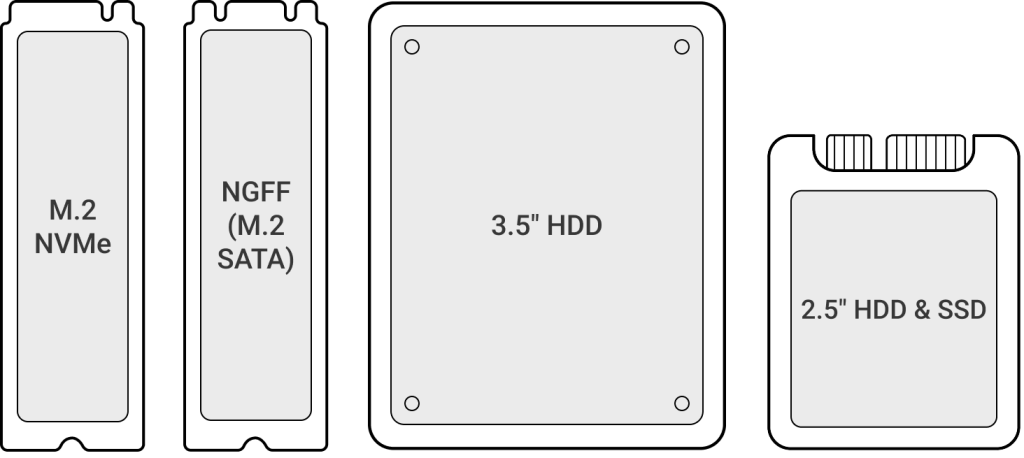

Universal M.2 Duplication with Cross-Interface Compatibility
Thanks to advanced FPGA technology, M.2 slots now offer seamless support for both NGFF (M.2 SATA) and NVMe drives. This all-in-one solution ensures maximum compatibility, enabling efficient cross-interface duplication without the need for multiple devices or adapters. Perfect for IT professionals and data recovery experts, it streamlines operations and boosts productivity.
Find the Perfect Copy Mode for Every Job
With five versatile copy modes available — Whole Media, System and Files, All Partitions, Percentage, and Non-Zero Copy — you can easily choose the one that best fits your task. Whether you’re duplicating full drives or just specific data, these options give you the flexibility to work smarter and more efficiently with both SSDs and HDDs.
Saving Time

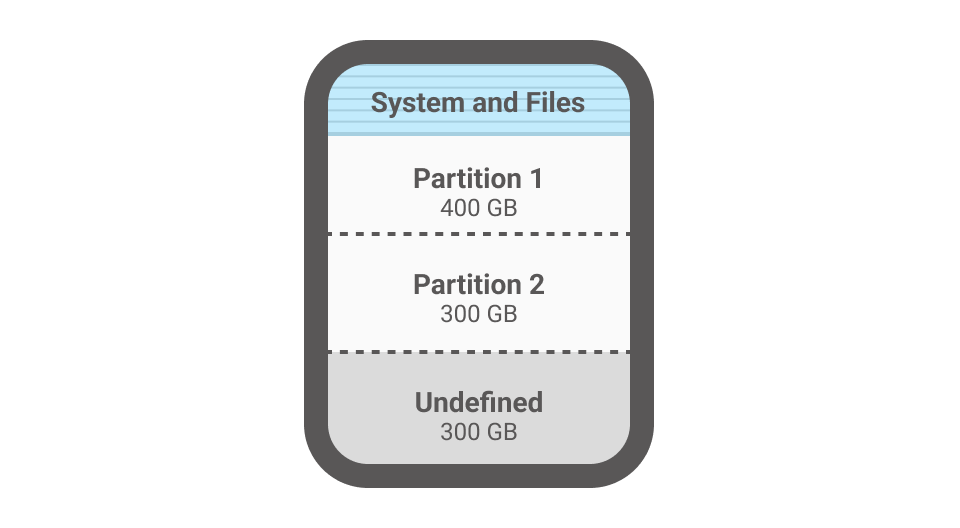

System and Files Copy (Intelligent Copy)
Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4/LVM/XFS), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.
Saving Time

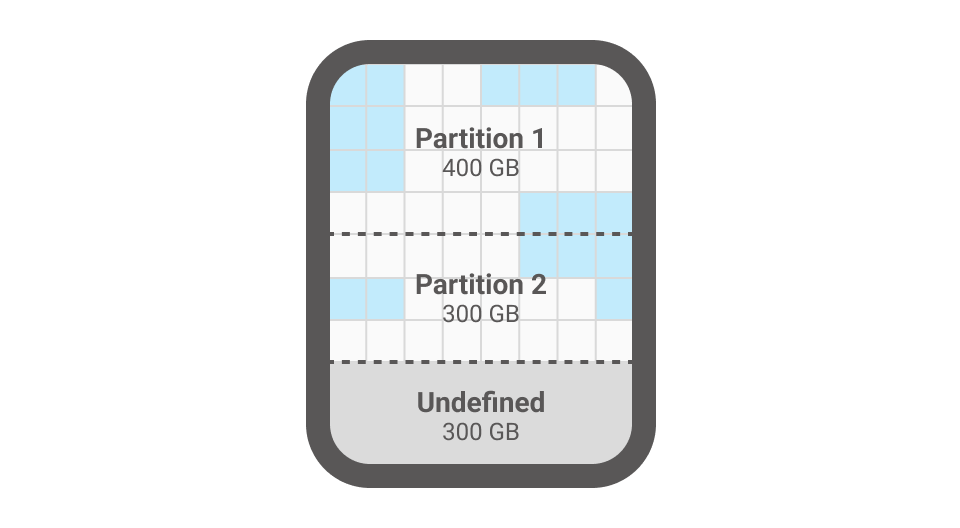

Non-zero Area
When the machine is unable to recognize the file system, it performs a copy operation that excludes zero-data area. This can reduce copying time and improve efficiency.

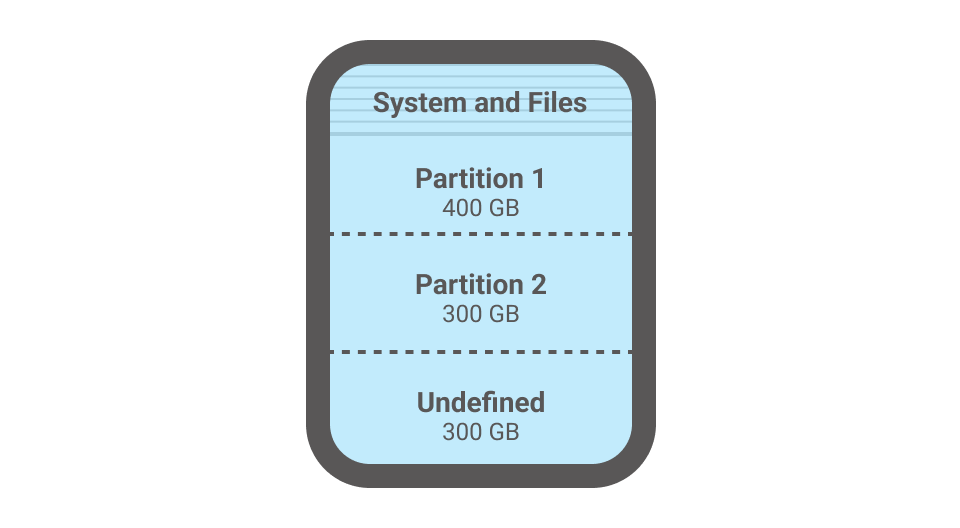

Whole Media Copy
Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

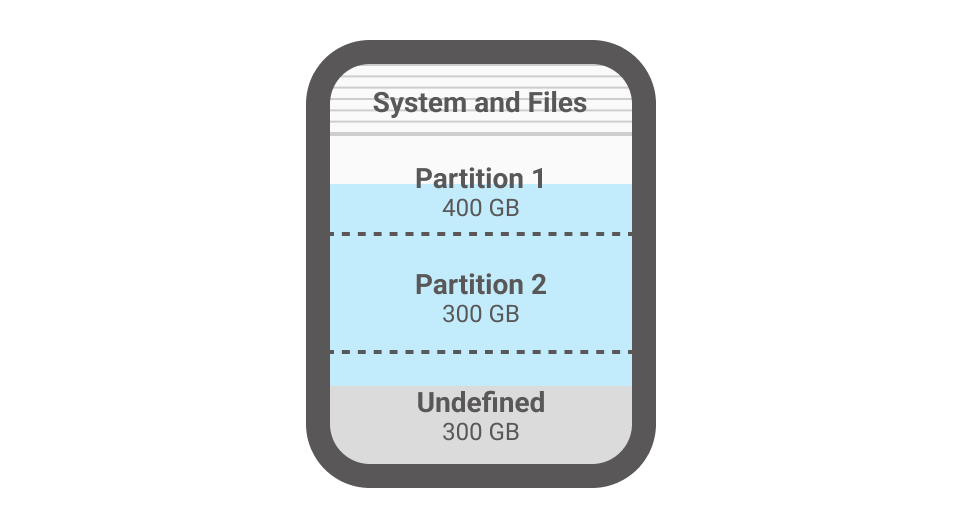

Percentage Copy
Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

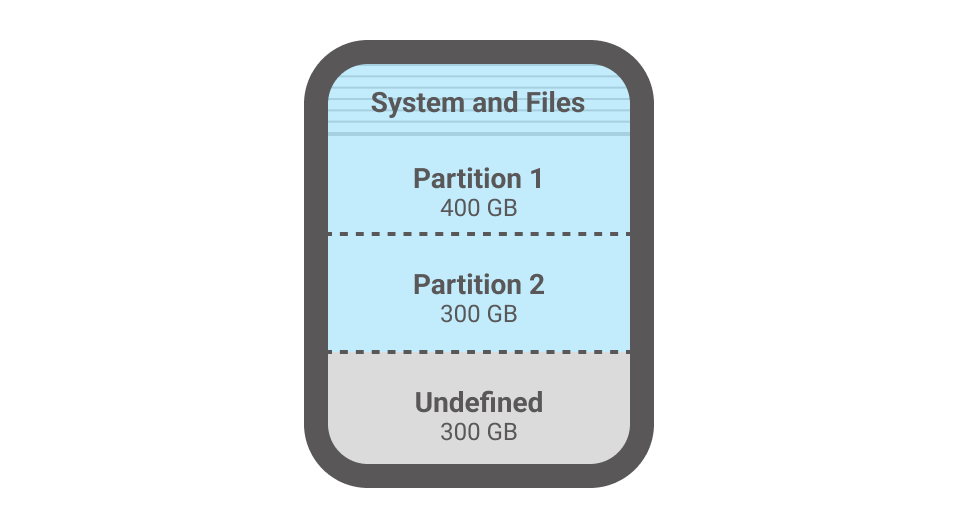

All Partition Copy
Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

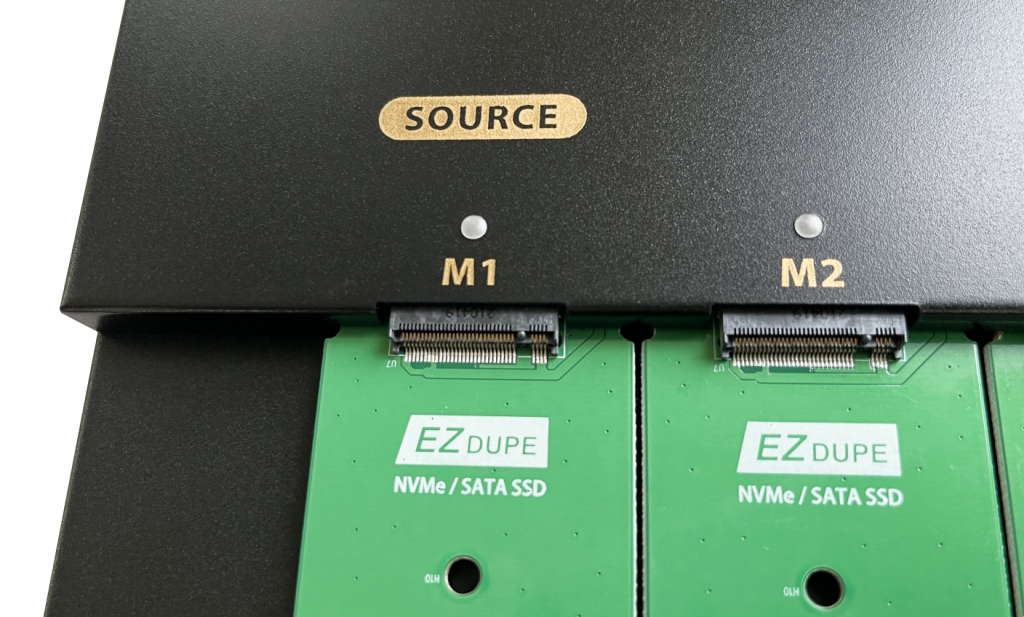

Boost Erasure Capacity with Erase Source Port Feature
The new Erase Source Port function lets you use the source port for erasure tasks, effectively increasing the number of available ports. This upgrade helps maximize your workflow efficiency by allowing more drives to be erased at the same time.
Pro Series Only

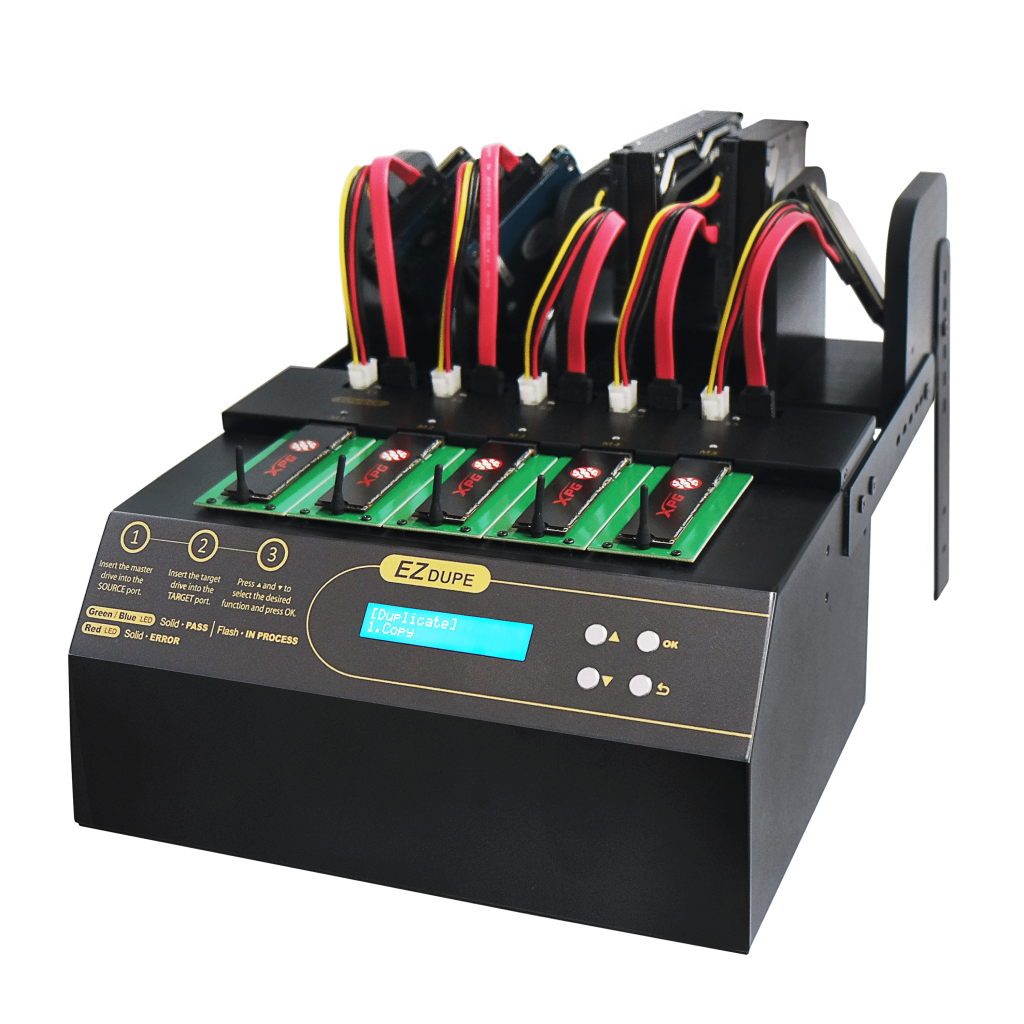

Dual Slot for High-Efficiency Duplication & Erasure
The Pro Series is designed for high-performance multitasking, with support for both M.2 and SATA drives at the same time. For instance, the NVMe CyCLONE Pro 1-4 can duplicate up to 4 M.2 and 5 SATA drives simultaneously from a single M.2 source. When it comes to erasing, it can handle up to 10 devices at once—dramatically increasing productivity and saving valuable time.
Built-in Log Recording for Smarter Workflow Management
The NVMe CyCLONE comes equipped with log recording to capture hardware details and duplication results, making it easier to track and manage tasks. For added convenience, connect an optional printer to instantly print labels—perfect for keeping your workflow organized and fully documented from start to finish.

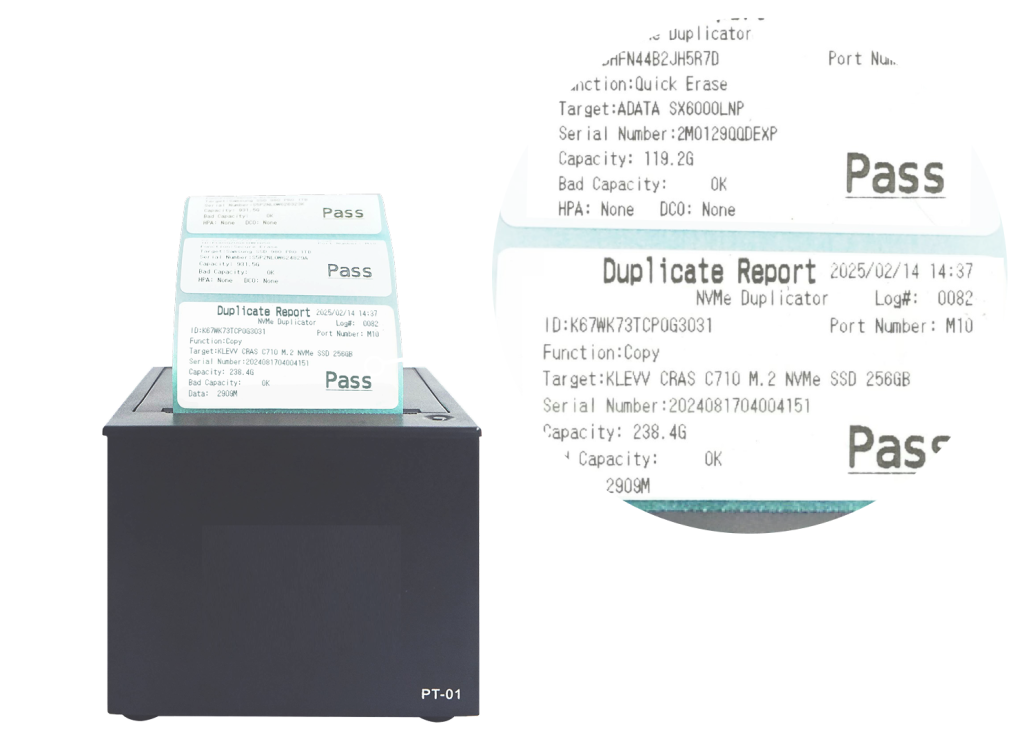

Seamless Label Printing with External Printer Support
The NVMe CyCLONE supports external printers, allowing automatic label printing with device details and operation results as soon as a task is complete. This feature helps streamline documentation and boosts overall management efficiency.
Eight Data Erase Modes to Prevent Confidential Data Leaks
Ideal for manufacturers, maintenance teams, and repair shops, the NVMe CyCLONE offers eight secure data erase modes. These options let you choose the right level of data wiping based on confidentiality needs—ensuring sensitive information is fully removed before reuse.
Quick Erase
Erase the index of a hard drive within a few seconds.
Full Erase
Erase the data from a hard drive by overwriting each sector which is able to read/write data.
3-Pass DoD
Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
7-Pass DoD
Erase HDD 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.
Secure Erase
According to National Institute of Standards and Technology (NIST) 800-88 Guidelines for Media Sanitization, Secure Erase is one of the ATA command. The data is totally and securely wiped from hard drives after implementation, and most of SATA hard drives on the market support Secure Erase.
Enhanced Secure Erase
Erase data by using SSD’s built-in ATA command. Additional actions will be executed according to different design of hard drives, e.g., destroying the encryption key on SSD to make the data unable to be decoded.
Erase HPA Area
Remove the HPA partition and free up the space.
Erase DCO Area
Remove the DCO partition.
Comprehensive Quality Check for Reliable Performance
The NVMe CyCLONE Pro is equipped with powerful testing tools to ensure drive reliability and authenticity. With advanced test modes and customizable criteria, it’s designed to meet the quality control needs of professionals.
Advanced Test Modes:
- H3 Read Test – Verifies data readability across the drive
- H5 Read/Write Test – Confirms both read and write functionality
- H6 Cyclic Unused Area Write/Read Test – Tests unused areas for hidden defects
- H7 Fake Card Test – Detects counterfeit or mislabeled storage devices
9 Customizable Testing Criteria:
- Test range
- Bad sector ratio
- Read speed threshold
- Write speed threshold
- Capacity threshold
- Format type
- Power-off times
- Power-off duration
- Execution cycles
4 Key Test Results Displayed:
- Quantity of bad sectors
- Tested capacity
- Average read speed
- Average write speed
These in-depth diagnostics help ensure every device meets your quality standards before deployment or reuse.
The difference between NVMe CyCLONE and NVMe CyCLONE Pro
NVMe CyCLONE vs. NVMe CyCLONE Pro – Feature Comparison
| Feature | NVMe CyCLONE | NVMe CyCLONE Pro |
|---|---|---|
| M.2 Slot Support | ✔ | ✔ |
| SATA Slot Support | – | ✔ |
| Quality Check | – | ✔ |
| Erase Modes | 7 Modes | 8 Modes |
OTHER FEATURES
- Automatic Detection of Slow Drives
Instantly alerts users to remove slow-performing drives to maintain optimal copy speeds and avoid bottlenecks. - Smart Port Power Control
Ports automatically power off in standby mode and power on during operation, reducing the risk of short circuits when inserting SSDs. - Flexible Bracket Installation
Two mounting options let users install the bracket on the top or back of the unit, based on personal preference and available workspace. - Fast & Secure SSD Reset
Built-in SSD Secure Erase command restores drives to factory settings within seconds, ensuring data is completely wiped and performance is optimized. - Daisy Chain Support
Easily connect up to 255 identical units, expanding your storage or duplication setup without hassle.
NVMe CyCLONE Video
How Amazing Pro series are!!! SATA Port & M.2 Port can work at the same time!
1-4 NVMe CyCLONE: The Pro Series truly stands out with its ability to run SATA and M.2 ports at the same time. Take the 1-4 NVMe CyCLONE, for example: when an M.2 drive is set as the source, you can duplicate data to 4 M.2 drives and 5 SATA drives all at once. And when it’s time to erase, the NVMe CyCLONE Pro supports erasing up to 10 drives—5 M.2 and 5 SATA—simultaneously. It’s an efficient, all-in-one solution designed to supercharge your workflow.
What is NVMe CyCLONE Pro – The Next Generation of Professional Duplicators
The NVMe CyCLONE Pro from the PRO Series is built to handle serious professional demands. It goes beyond the features of the Classic model with dual slots that support both SATA and M.2 (NVMe and NGFF) drives. With copy, erase, and test functions all in one device, it’s a true 3-in-1 solution. Whether you’re managing high-volume duplication or need reliable performance across different drive types, the CyCLONE Pro sets a new standard for what a professional duplicator should be.
Not Sure What NVMe CyCLONE Pro Is Right For Your Company?
Learn more about the solutions AFT INDIA offers to find the best NVMe CyCLONE Pro fit to M.2, NVMe, PCIe, SATA duplicators, SSD cloning, data transfer, high-speed storage, storage duplication for your use case. With FPGA technology, M.2 slots support both NGFF (M.2 SATA), M Key NVMe, M+B Key NVMe and NVMe, ensuring high compatibility for cross-interface duplication.
Questions? Contact Sales
NVMe CyCLONE Pro provide high-speed duplication for NVMe/M.2/PCIe/SSD/HDD storage harddisks duplication. Experience seamless data transfer management with our powerful 4 NVMe CyCLONE Pro 600/300 Duplicator (36GB/min), (18GB/min) copy speed solution!
